REAR PILLAR (OUTER) AND CORNER PLATE INSTALLATION [PANEL REPLACEMENT]

id098008956100

Symbol Mark

am6zzb00000246

Installation Procedure

5HB

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for plug welds before installing new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

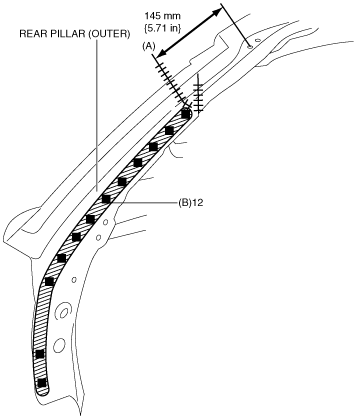

4.  Cut-and-join area locations indicated by (A) then plug weld 24 locations indicated by (B) shown in the figure.

Note

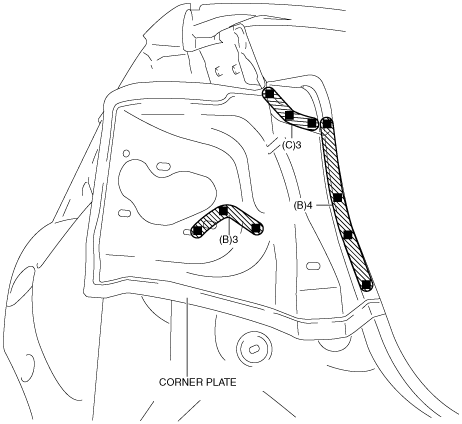

•  When replacing the rear pillar (outer) and corner plate separately, weld the 3 locations indicated by (C) shown in the figure.

am6zzb00000317

am6zzb00000318

Wagon

1.  When installing new parts, measure and adjust the body as necessary to conform with standard dimensions.

2.  Drill holes for plug welds before installing new parts.

3.  After temporarily installing new parts, make sure the related parts fit properly.

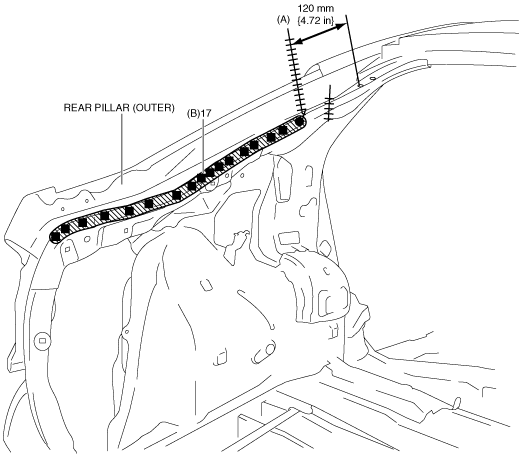

4.  Cut-and-join area locations indicated by (A) then plug weld 15 locations indicated by (B) shown in the figure.

Note

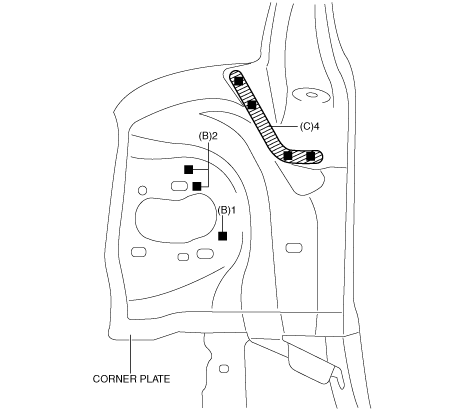

•  When replacing the rear pillar (outer) and corner plate separately, weld the 4 locations indicated by (C) shown in the figure.

am6zzb00000269

am6zzb00000270
