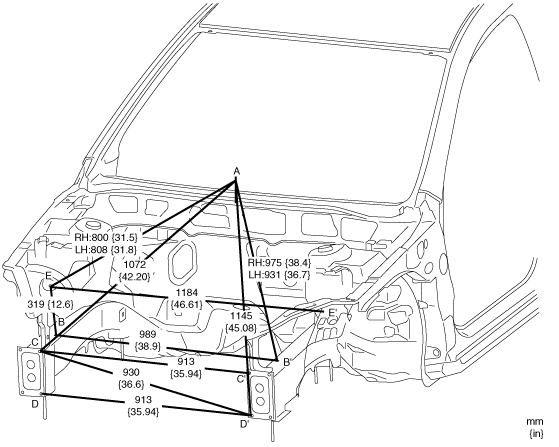

FRONT BODY STRAIGHT-LINE DIMENSIONS (3) [DIMENSIONS]

id098010740800

am6zzb00000133

am6zzb00000134

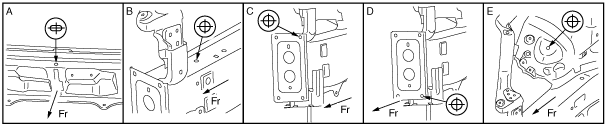

Point symbol

Designation

Hole diameter or bolt or nut size (mm {in})

A

Dash upper panel datum hole

10×14

{0.39×0.55}

B

Front side frame datum hole

φ10 {0.39}

C

Bumper bracket datum hole

φ12 {0.47}

D

Bumper bracket datum hole

φ12 {0.47}

E

Wheel apron front datum hole

RH:φ12 {0.47}

LH:φ8 {0.3}

Point symbol	Designation	Hole diameter or bolt or nut size (mm {in})
A	Dash upper panel datum hole	10×14 {0.39×0.55}
B	Front side frame datum hole	φ10 {0.39}
C	Bumper bracket datum hole	φ12 {0.47}
D	Bumper bracket datum hole	φ12 {0.47}
E	Wheel apron front datum hole	RH:φ12 {0.47} LH:φ8 {0.3}
