ROOM STRAIGHT-LINE DIMENSIONS (2) [DIMENSIONS]
id098010743400

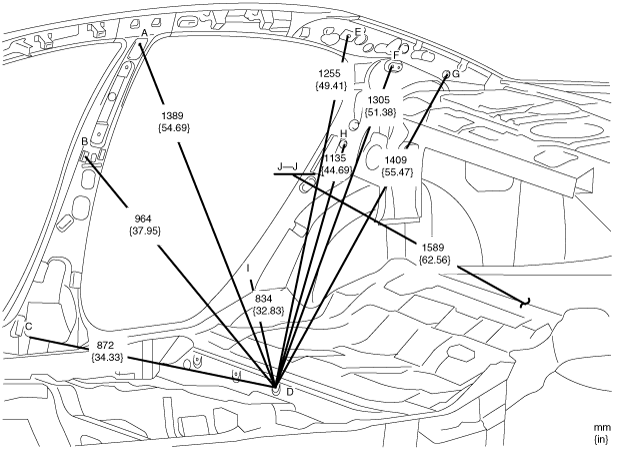

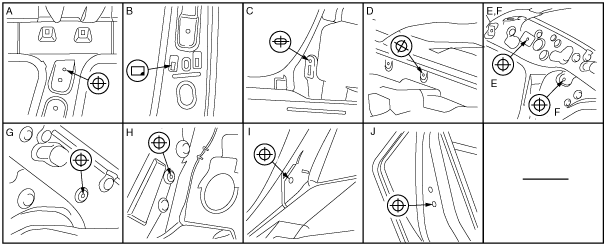

4SD
am6zzb00000139
|
am2zzb00000130
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Curtain air bag module installation hole
|
φ7 {0.3}
|
|
B
|
B-pillar upper trim installation square hole
|
8×18
{0.3×0.71}
|
|
C
|
Wiring harness installation hole
|
φ7 {0.3}
|
|
D
|
Rear seat cushion installation hole
|
φ10 {0.39}
|
|
E
|
Rear pillar (inner) datum hole
|
φ7 {0.3}
|
|
F
|
Rear pillar (inner) datum hole
|
φ7 {0.3}
|
|
G
|
C-pillar trim installation hole
|
φ7 {0.3}
|
|
H
|
Antenna feeder installation hole
|
φ7 {0.3}
|
|
I
|
Lock against location hole
|
φ8.4 {0.33}
|
|
J
|
Rear door striker installation hole
|
φ13 {0.51}
|

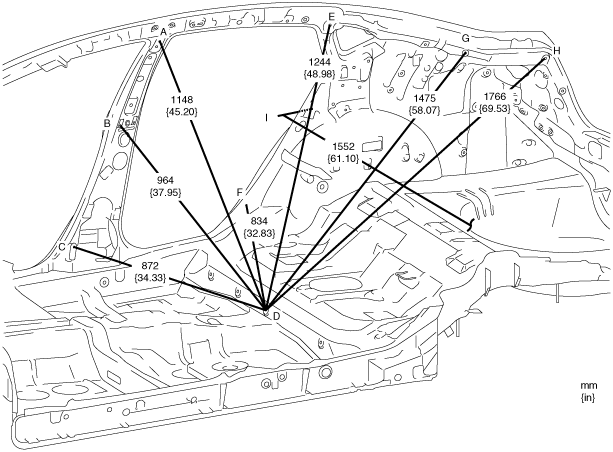

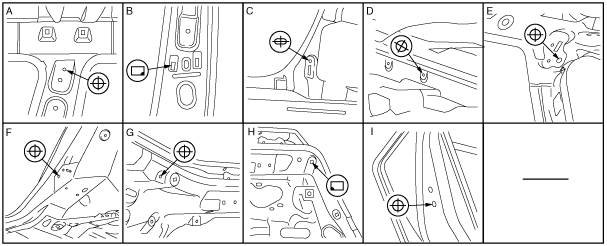

5HB
am6zzb00000295
|
am6zzb00000224
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Curtain air bag module installation hole
|
φ7 {0.3}
|
|
B
|
B-pillar upper trim installation square hole
|
8×18
{0.3×0.71}
|
|
C
|
Wiring harness installation hole
|
φ7 {0.3}
|
|
D
|
Rear seat cushion installation hole
|
φ10 {0.39}
|
|
E
|
C-pillar trim installation hole
|
φ10.2 {0.402}
|
|
F
|
Lock against location hole
|
φ8.4 {0.33}
|
|
G
|
C-pillar trim installation hole
|
φ8.5 {0.33}
|
|
H
|
Trunk side trim installation hole
|
7.2×12 {0.29×0.47}
|
|
I
|
Rear door striker installation hole
|
φ13 {0.51}
|

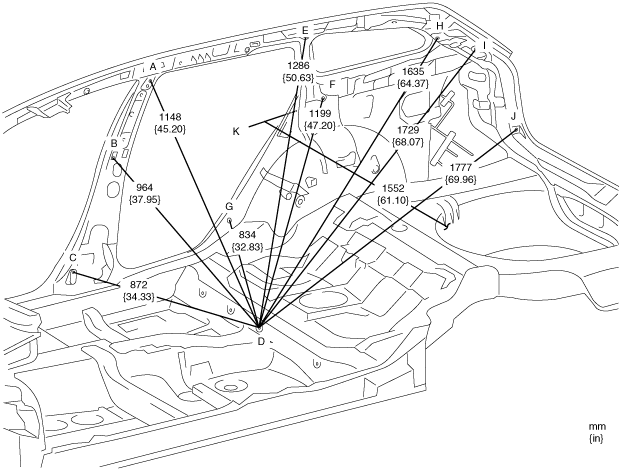

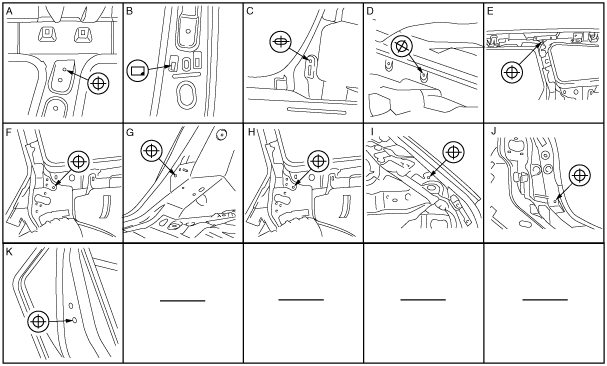

Wagon
am6zzb00000296
|
am6zzb00000226
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Curtain air bag module installation hole
|
φ7 {0.3}
|
|
B
|
B-pillar upper trim installation square hole
|
8×14
{0.3×0.55}
|
|
C
|
Wiring harness installation hole
|
φ7 {0.3}
|
|
D
|
Rear seat cushion installation hole
|
φ10 {0.39}
|
|
E
|
C-pillar trim installation hole
|
φ7 {0.3}
|
|
F
|
Trunk side trim installation hole
|
φ6 {0.2}
|
|
G
|
Lock against location hole
|
φ8.4 {0.33}
|
|
H
|
Antenna feeder installation hole
|
φ7 {0.3}
|
|
I
|
Wiring harness installation hole
|
φ7 {0.3}
|
|
J
|
Trunk side trim installation hole
|
φ8.6 {0.34}
|
|
K
|
Rear door striker installation hole
|
φ13 {0.51}
|
