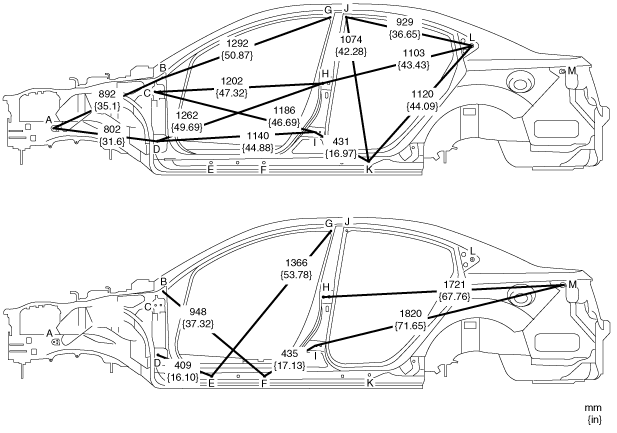

CABIN SIDE FRAME STRAIGHT-LINE DIMENSIONS [DIMENSIONS]
id098010743600
4SD
am6zzb00000276
|
am6zzb00000136
|
|

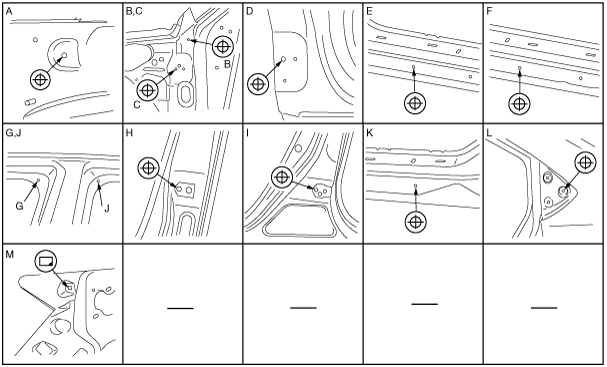

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front mudguard installation hole
|
φ8 {0.3}
|
|
B
|
Front fender panel installation hole
|
φ10 {0.39}
|
|
C
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
D
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
E
|
Side step molding installation hole
|
φ10 {0.39}
|
|
F
|
Side step molding installation hole
|
φ10 {0.39}
|
|
G
|
Side frame (outer) dowel
|
-
|
|
H
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
I
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
J
|
Side frame (outer) dowel
|
-
|
|
K
|
Side step molding installation hole
|
φ10 {0.39}
|
|
L
|
Rear pillar garnish installation hole
|
φ10 {0.39}
|
|
M
|
Rear combination light installation square hole
|
8.1×8.1
{0.32×0.32}
|

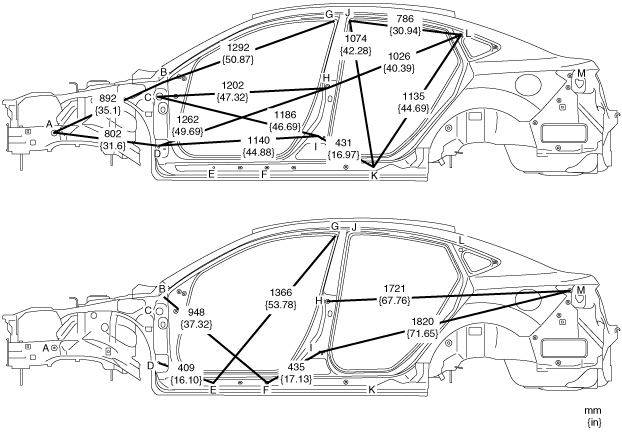

5HB
am6zzb00000277
|
am6zzb00000220
|
|

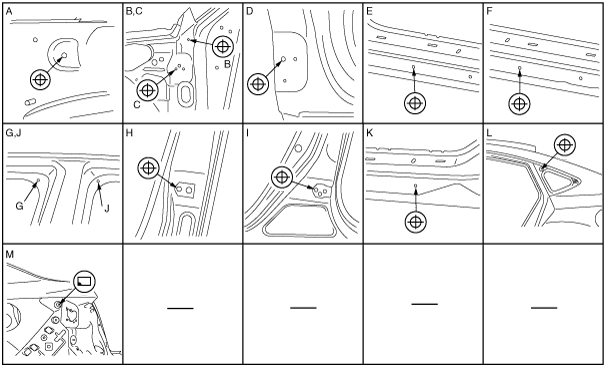

Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front mudguard installation hole
|
φ8 {0.3}
|
|
B
|
Front fender panel installation hole
|
φ10 {0.39}
|
|
C
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
D
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
E
|
Side step molding installation hole
|
φ10 {0.39}
|
|
F
|
Side step molding installation hole
|
φ10 {0.39}
|
|
G
|
Side frame (outer) dowel
|
-
|
|
H
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
I
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
J
|
Side frame (outer) dowel
|
-
|
|
K
|
Side step molding installation hole
|
φ10 {0.39}
|
|
L
|
Quarter window glass installation hole
|
φ8 {0.3}
|
|
M
|
Rear combination light installation square hole
|
8.1×8.1
{0.32×0.32}
|

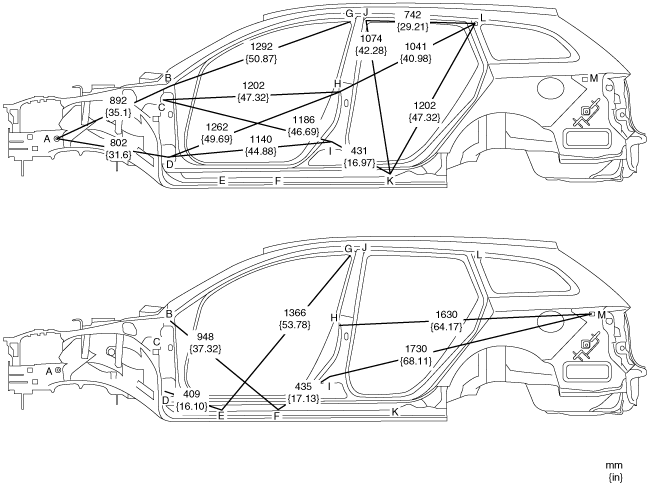

Wagon
am6zzb00000319
|
am6zzb00000222
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Front mudguard installation hole
|
φ8 {0.3}
|
|
B
|
Front fender panel installation hole
|
φ10 {0.39}
|
|
C
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
D
|
Front door hinge installation hole
|
φ12 {0.47}
|
|
E
|
Side step molding installation hole
|
φ10 {0.39}
|
|
F
|
Side step molding installation hole
|
φ10 {0.39}
|
|
G
|
Side frame (outer) dowel
|
-
|
|
H
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
I
|
Rear door hinge installation hole
|
φ12 {0.47}
|
|
J
|
Side frame (outer) dowel
|
-
|
|
K
|
Side step molding installation hole
|
φ10 {0.39}
|
|
L
|
Quarter window glass installation hole
|
φ8 {0.3}
|
|
M
|
Rear combination light installation square hole
|
8.1×8.1
{0.32×0.32}
|
