REAR BODY STRAIGHT-LINE DIMENSIONS (1) [DIMENSIONS]
id098010746300

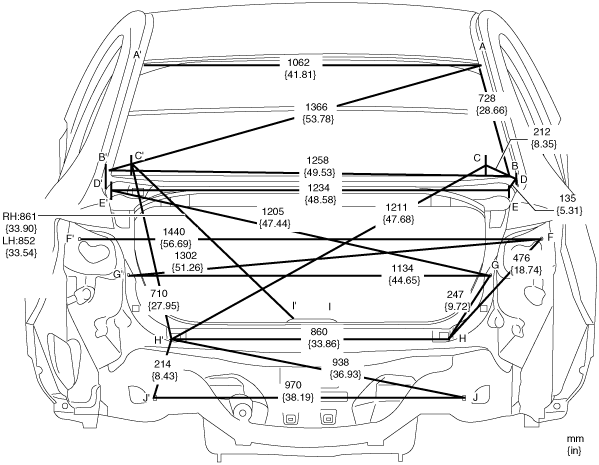

4SD
am6zzb00000140
|
am6zzb00000141
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Roof panel notch
|
-
|
|
B
|
Side frame (outer) seamless location
|
-
|
|
C
|
Package tray datum hole
|
φ12 {0.47}
|
|
D
|
Trunk lid hinge installation hole
|
φ12 {0.47}
|
|
E
|
Trunk lid hinge installation hole
|
φ12 {0.47}
|
|
F
|
Corner plate datum hole
|
φ7 {0.3}
|
|
G
|
Rear bumper installation hole
|
7.2×12
{0.3×0.47}
|
|
H
|
Rear bumper installation square hole
|
14×20
{0.55×0.79}
|
|
I
|
Trunk lid striker installation hole
|
φ7 {0.3}
|
|
J
|
Rear end panel datum hole
|
RH:φ12 {0.47}
LH:12×18
{0.47×0.71}
|

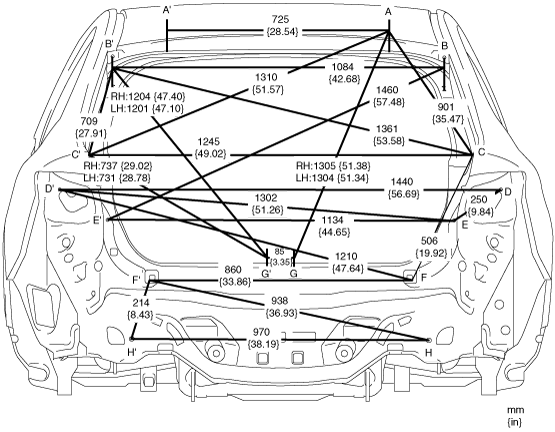

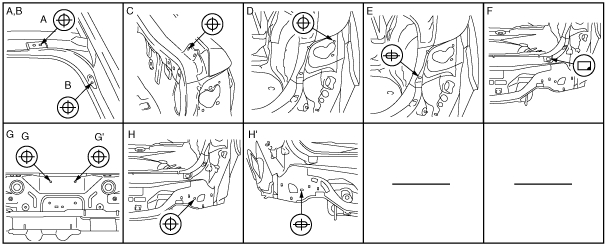

5HB
am6zzb00000227
|
am6zzb00000228
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Liftgate hinge installation hole
|
φ12 {0.47}
|
|
B
|
Liftgate dumper installation hole
|
φ7 {0.3}
|
|
C
|
Dovetail installation hole
|
φ7 {0.3}
|
|
D
|
Corner plate datum hole
|
φ7 {0.3}
|
|
E
|
Rear bumper installation hole
|
7.2×12
{0.29×0.47}
|
|
F
|
Rear bumper installation square hole
|
17×20
{0.67×0.79}
|
|
G
|
Liftgate stliker installation hole
|
φ10 {0.39}
|
|
H
|
Rear end panel datum hole
|
RH:φ12 {0.47}
LH:12×18
{0.47×0.71}
|

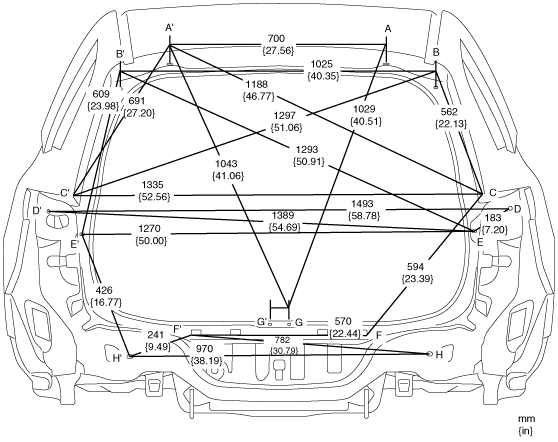

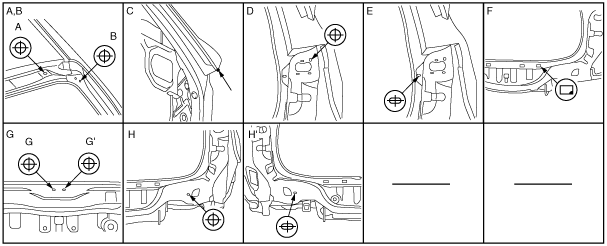

Wagon
am6zzb00000229
|
am6zzb00000230
|
|
Point symbol |
Designation |
Hole diameter or bolt or nut size (mm {in}) |
|---|---|---|
|
A
|
Liftgate hinge installation hole
|
φ14 {0.55}
|
|
B
|
Liftgate dumper installation hole
|
φ7 {0.3}
|
|
C
|
Rear fender projection location
|
-
|
|
D
|
Corner plate datum hole
|
φ7 {0.3}
|
|
E
|
Rear bumper installation hole
|
7.2 × 12
{0.3 × 0.47}
|
|
F
|
Rear bumper installation square hole
|
17×30
{0.55×1.2}
|
|
G
|
Liftgate striker installation hole
|
φ10 {0.39}
|
|
H
|
Rear end panel datum hole
|
RH:φ12 {0.47}
LH:12×18
{0.47×0.71}
|
