ULTRA HIGH-TENSION STEEL [BODY STRUCTURE]

id098013745600


Characteristics of Ultra High-Tensile Steel Plates

•  Ultra high-tensile steel plates have enhanced tensile strength compared to previous high-tensile steel plates.
•  Because the strength is maintained even though the plates are thin-walled, the ultra high-tensile steel plates are used for the frames and the main frame parts which form the cabin, reducing the weight of the vehicle.
•  Enhanced shock absorption has improved the safety.

Range of Use and Cautions for Service

•  Because the ultra high-tensile steel is hard and it may be difficult to reform, when extracting the damaged part using a frame repair machine, perform the work verifying that other parts are not affected.
•  When drilling welded parts, use a well-ground drill bit.
•  After welding, inspect the weld strength. If adhesion is poor, perform CO2 arc welding (plug welding).

4SD

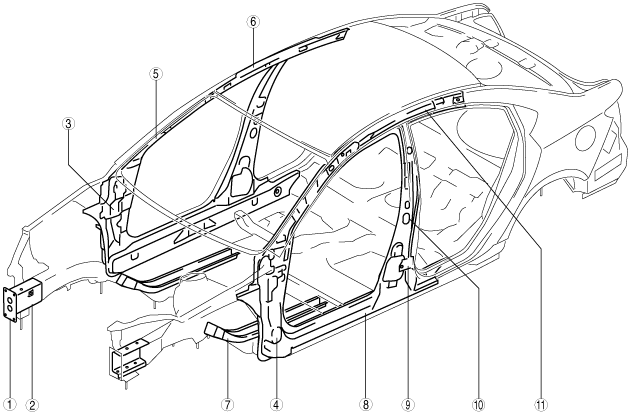

am6zzb00000032

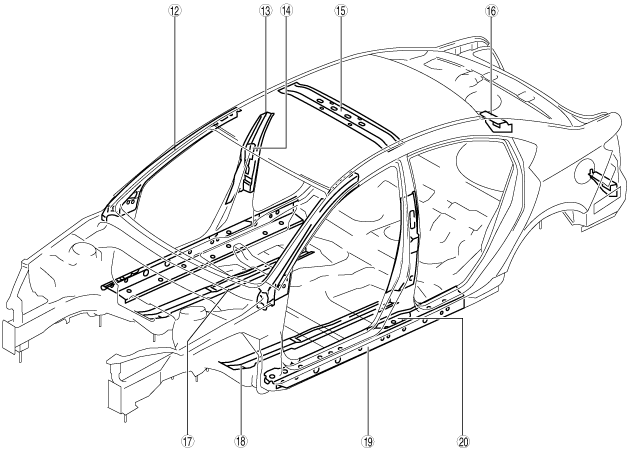

am6zzb00000033

NO.
Part Name
Strength (MPa)
1
Front bumper bracket
590
2
Front side frame (inner, front)
590
3
Hinge pillar (inner)
590
4
Hinge reinforcement
590
5
Front pillar (inner)
590
6
Roof rail (inner, rear)
590
7
Front frame reinforcement (rear)
590
8
Side sill (inner)
590
9
Hinge reinforcement (center)
590
10
B-pillar (inner)
590
11
Roof rail reinforcement
590
12
Front pillar reinforcement (upper)
780
13
B-pillar reinforcement (center)
780
14
B-pillar reinforcement (inner)
980
15
Roof reinforcement (center)
780
16
Rear bumper bracket
780
17
Front B frame
780
18
Floor reinforcement
780
19
Side sill reinforcement
780
20
Side sill reinforcement (upper)
780

5HB

am6zzb00000174

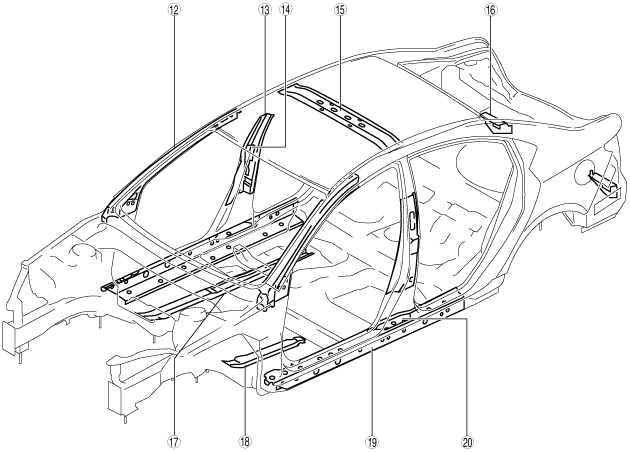

am6zzb00000175

NO.
Part Name
Strength (MPa)
1
Front bumper bracket
590
2
Front side frame (inner, front)
590
3
Hinge pillar (inner)
590
4
Hinge reinforcement
590
5
Front pillar (inner)
590
6
Roof rail (inner, rear)
590
7
Front frame reinforcement (rear)
590
8
Side sill (inner)
590
9
Hinge reinforcement (center)
590
10
B-pillar (inner)
590
11
Roof rail reinforcement
590
12
Front pillar reinforcement (upper)
780
13
B-pillar reinforcement (center)
780
14
B-pillar reinforcement (inner)
980
15
Roof reinforcement (center)
780
16
Rear bumper bracket
780
17
Front B frame
780
18
Floor reinforcement
780
19
Side sill reinforcement
780
20
Side sill reinforcement (upper)
780

Wagon

am6zzb00000315

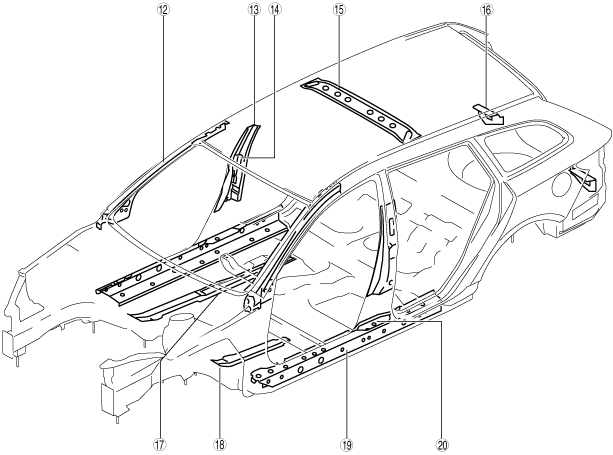

am6zzb00000316

NO.
Part Name
Strength (MPa)
1
Front bumper bracket
590
2
Front side frame (inner, front)
590
3
Hinge pillar (inner)
590
4
Hinge reinforcement
590
5
Front pillar (inner)
590
6
Roof rail (inner, rear)
590
7
Front frame reinforcement (rear)
590
8
Side sill (inner)
590
9
Hinge reinforcement (center)
590
10
B-pillar (inner)
590
11
Roof rail reinforcement
590
12
Front pillar reinforcement (upper)
780
13
B-pillar reinforcement (center)
780
14
B-pillar reinforcement (inner)
980
15
Roof reinforcement No.2
780
16
Rear bumper bracket
780
17
Front B frame
780
18
Floor reinforcement
780
19
Side sill reinforcement
780
20
Side sill reinforcement (upper)
780
