CONSTRUCTION STANDARD VALUES [CONSTRUCTION STANDARD VALUES]

id0980c0740300

Front View

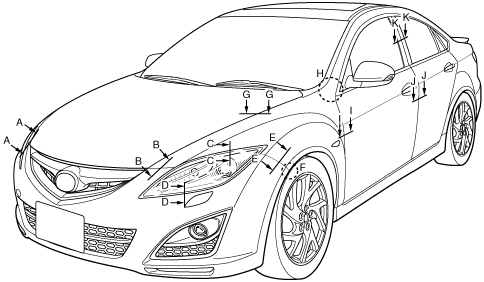

am6zzb00000305

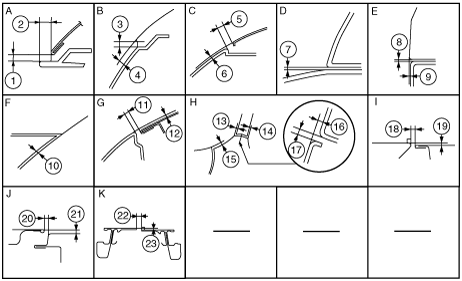

adejjb00000039

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Side by difference (mm {in})

A

1

4.5

{0.18}

6.0

{0.24}

3.0

{0.12}

2.0

{0.079}

2

1.5

{0.059}

3.0

{0.12}

0

{0}

-

B

3

1.2

{0.18}

2.3

{0.091}

0.1

{0.004}

2.0

{0.079}

4

1.4

{0.055}

2.9

{0.11}

-0.1

{-0.004}

-

C

5

1.5

{0.059}

3.0

{0.12}

0

{0}

2.5

{0.096}

6

0.1

{0.004}

1.6

{0.063}

-1.4

{-0.055}

-

D

7

1.5

{0.059}

3.0

{0.12}

0

{0.}

-

E

8

0

{0}

1.0

{0.039}

-

-

9

0.5

{0.02}

1.2

{0.047}

-0.2

{-0.008}

-

F

10

0

{0}

2.0

{0.079}

-2.0

{-0.079}

-

G

11

3.5

{0.14}

4.5

{0.18}

2.5

{0.098}

-

12

-0.5

{-0.02}

0.7

{0.03}

-1.7

{-0.067}

-

H

13

0

{0}

1.0

{0.039}

-1.0

{-0.039}

-

14

0

{0}

1.0

{0.039}

-1.0

{-0.039}

-

15

0

{0}

1.2

{0.047}

-1.2

{-0.047}

-

16

0

{0}

1.5

{0.059}

-1.5

{-0.059}

-

17

2.0

{0.079}

3.2

{0.13}

0.8

{0.03}

1.2

{0.047}

I

18

3.7

{0.15}

4.9

{0.19}

2.5

{0.098}

1.2

{0.047}

19

0

{0}

1.2

{0.047}

-1.2

{-0.047}

-

J

20

3.5

{0.14}

4.5

{0.18}

2.5

{0.098}

1.0

{0.039}

21

0

{0}

1.0

{0.039}

-1.0

{-0.039}

-

K

22

4.5

{0.18}

6.0

{0.24}

3.0

{0.12}

1.5

{0.059}

23

0

{0}

1.5

{0.059}

-1.5

{-0.059}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Side by difference (mm {in})
A	1	4.5 {0.18}	6.0 {0.24}	3.0 {0.12}	2.0 {0.079}
2	1.5 {0.059}	3.0 {0.12}	0 {0}	-
B	3	1.2 {0.18}	2.3 {0.091}	0.1 {0.004}	2.0 {0.079}
4	1.4 {0.055}	2.9 {0.11}	-0.1 {-0.004}	-
C	5	1.5 {0.059}	3.0 {0.12}	0 {0}	2.5 {0.096}
6	0.1 {0.004}	1.6 {0.063}	-1.4 {-0.055}	-
D	7	1.5 {0.059}	3.0 {0.12}	0 {0.}	-
E	8	0 {0}	1.0 {0.039}	-	-
9	0.5 {0.02}	1.2 {0.047}	-0.2 {-0.008}	-
F	10	0 {0}	2.0 {0.079}	-2.0 {-0.079}	-
G	11	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	-
12	-0.5 {-0.02}	0.7 {0.03}	-1.7 {-0.067}	-
H	13	0 {0}	1.0 {0.039}	-1.0 {-0.039}	-
14	0 {0}	1.0 {0.039}	-1.0 {-0.039}	-
15	0 {0}	1.2 {0.047}	-1.2 {-0.047}	-
16	0 {0}	1.5 {0.059}	-1.5 {-0.059}	-
17	2.0 {0.079}	3.2 {0.13}	0.8 {0.03}	1.2 {0.047}
I	18	3.7 {0.15}	4.9 {0.19}	2.5 {0.098}	1.2 {0.047}
19	0 {0}	1.2 {0.047}	-1.2 {-0.047}	-
J	20	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	1.0 {0.039}
21	0 {0}	1.0 {0.039}	-1.0 {-0.039}	-
K	22	4.5 {0.18}	6.0 {0.24}	3.0 {0.12}	1.5 {0.059}
23	0 {0}	1.5 {0.059}	-1.5 {-0.059}	-

Rear View

4SD

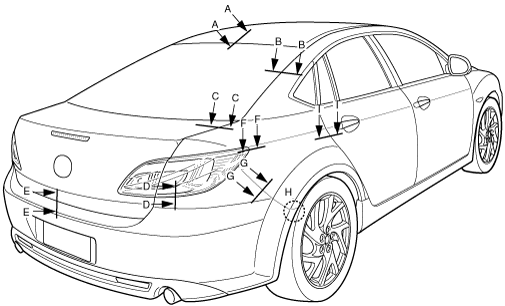

am6zzb00000306

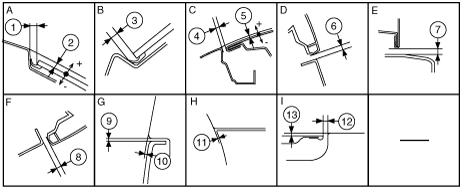

am6zzb00000292

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Side by difference (mm {in})

A

1

4.0

{0.16}

5.7

{0.22}

2.3

{0.091}

-

2

2.0

{0.079}

3.8

{0.15}

0.2

{0.008}

-

B

3

4.0

{0.16}

6.2

{0.24}

1.8

{0.071}

-

C

4

3.5

{0.14}

4.5

{0.18}

2.5

{0.098}

1.0

{0.039}

5

0.5

{0.02}

1.5

{0.059}

-0.5

{-0.02}

1.2

{0.047}

D

6

1.5

{0.059}

3.0

{0.12}

0

{0}

-

E

7

6.0

{0.24}

8.0

{0.31}

4.0

{0.16}

2.0

{0.079}

F

8

1.5

{0.059}

2.5

{0.098}

0.5

{0.02}

-

G

9

0

{0}

1.0

{0.039}

-

-

10

0.5

{0.02}

1.2

{0.047}

-0.5

{-0.02}

-

H

11

0

{0}

2.0

{0.079}

-2.0

{-0.079}

-

I

12

3.5

{0.14}

4.5

{0.18}

2.5

{0.098}

1.0

{0.039}

13

0

{0}

1.0

{0.039}

-1.0

{-0.039}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Side by difference (mm {in})
A	1	4.0 {0.16}	5.7 {0.22}	2.3 {0.091}	-
2	2.0 {0.079}	3.8 {0.15}	0.2 {0.008}	-
B	3	4.0 {0.16}	6.2 {0.24}	1.8 {0.071}	-
C	4	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	1.0 {0.039}
5	0.5 {0.02}	1.5 {0.059}	-0.5 {-0.02}	1.2 {0.047}
D	6	1.5 {0.059}	3.0 {0.12}	0 {0}	-
E	7	6.0 {0.24}	8.0 {0.31}	4.0 {0.16}	2.0 {0.079}
F	8	1.5 {0.059}	2.5 {0.098}	0.5 {0.02}	-
G	9	0 {0}	1.0 {0.039}	-	-
10	0.5 {0.02}	1.2 {0.047}	-0.5 {-0.02}	-
H	11	0 {0}	2.0 {0.079}	-2.0 {-0.079}	-
I	12	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	1.0 {0.039}
13	0 {0}	1.0 {0.039}	-1.0 {-0.039}	-

5HB

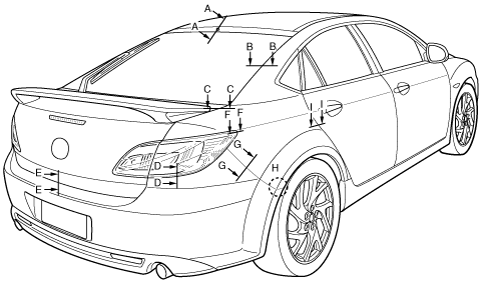

am6zzb00000307

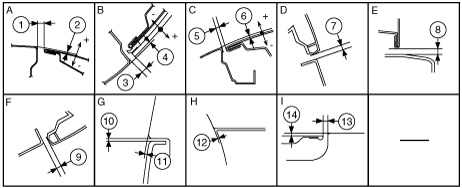

am6zzb00000293

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Side by difference (mm {in})

A

1

6.0

{0.24}

7.0

{0.28}

5.0

{0.20}

1.2

{0.047}

2

-1.1

{0.043}

-0.1

{0.004}

-2.1

{-0.083}

-

B

3

5.4

{0.21}

7.5

{0.30}

3.3

{0.13}

2.8

{0.11}

4

-6.4

{0.25}

-4.2

{-0.17}

-8.6

{-0.34}

-

C

5

4.0

{0.16}

5.2

{0.20}

2.8

{0.11}

1.2

{0.047}

6

-0.6

{0.02}

0.6

{0.02}

-1.8

{-0.071}

-

D

7

1.5

{0.059}

3.0

{0.12}

0

{0}

-

E

8

6.0

{0.24}

8.0

{0.31}

4.0

{0.16}

2.0

{0.079}

F

9

1.5

{0.059}

2.5

{0.098}

0.5

{0.02}

-

G

10

0

{0}

1.0

{0.039}

-

-

11

0.5

{0.02}

1.2

{0.047}

-0.5

{-0.02}

-

H

12

0

{0}

2.0

{0.079}

-2.0

{-0.079}

-

I

13

3.5

{0.14}

4.5

{0.18}

2.5

{0.098}

1.0

{0.039}

14

0

{0}

1.0

{0.039}

-1.0

{-0.039}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Side by difference (mm {in})
A	1	6.0 {0.24}	7.0 {0.28}	5.0 {0.20}	1.2 {0.047}
2	-1.1 {0.043}	-0.1 {0.004}	-2.1 {-0.083}	-
B	3	5.4 {0.21}	7.5 {0.30}	3.3 {0.13}	2.8 {0.11}
4	-6.4 {0.25}	-4.2 {-0.17}	-8.6 {-0.34}	-
C	5	4.0 {0.16}	5.2 {0.20}	2.8 {0.11}	1.2 {0.047}
6	-0.6 {0.02}	0.6 {0.02}	-1.8 {-0.071}	-
D	7	1.5 {0.059}	3.0 {0.12}	0 {0}	-
E	8	6.0 {0.24}	8.0 {0.31}	4.0 {0.16}	2.0 {0.079}
F	9	1.5 {0.059}	2.5 {0.098}	0.5 {0.02}	-
G	10	0 {0}	1.0 {0.039}	-	-
11	0.5 {0.02}	1.2 {0.047}	-0.5 {-0.02}	-
H	12	0 {0}	2.0 {0.079}	-2.0 {-0.079}	-
I	13	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	1.0 {0.039}
14	0 {0}	1.0 {0.039}	-1.0 {-0.039}	-

Wagon

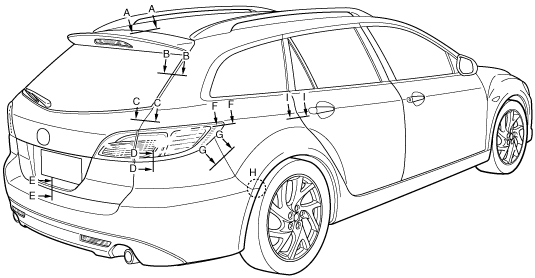

am6zzb00000308

am6zzb00000294

No.

Measurement part

Standard values (mm {in})

Maximum values (mm {in})

Minimum values (mm {in})

Side by difference (mm {in})

A

1

6.5

{0.26}

7.5

{0.30}

5.5

{0.22}

1.2

{0.047}

2

-1.0

{0.079}

0

{0}

-2.0

{-0.079}

-

B

3

4.8

{0.19}

6.9

{0.27}

2.7

{0.11}

-2.5

{0.098}

4

-3.2

{-0.13}

-1.0

{-0.039}

-5.4

{-0.21}

-

C

5

4.0

{0.16}

5.2

{0.20}

2.8

{0.11}

1.2

{0.047}

6

-0.5

{0.02}

0.7

{0.003}

-1.7

{-0.067}

-

D

7

1.5

{0.059}

3.0

{0.12}

0

{0}

-

E

8

6.0

{0.24}

8.0

{0.31}

4.0

{0.16}

2.0

{0.079}

F

9

1.5

{0.059}

2.5

{0.098}

0.5

{0.02}

-

G

10

0

{0}

1.0

{0.039}

-

-

11

0.5

{0.02}

1.2

{0.047}

-0.5

{-0.02}

-

H

12

0

{0}

2.0

{0.079}

-2.0

{-0.079}

-

I

13

3.5

{0.14}

4.5

{0.18}

2.5

{0.098}

1.0

{0.039}

14

0

{0}

1.0

{0.039}

-1.0

{-0.039}

-

No.	Measurement part	Standard values (mm {in})	Maximum values (mm {in})	Minimum values (mm {in})	Side by difference (mm {in})
A	1	6.5 {0.26}	7.5 {0.30}	5.5 {0.22}	1.2 {0.047}
A	2	-1.0 {0.079}	0 {0}	-2.0 {-0.079}	-
B	3	4.8 {0.19}	6.9 {0.27}	2.7 {0.11}	-2.5 {0.098}
B	4	-3.2 {-0.13}	-1.0 {-0.039}	-5.4 {-0.21}	-
C	5	4.0 {0.16}	5.2 {0.20}	2.8 {0.11}	1.2 {0.047}
C	6	-0.5 {0.02}	0.7 {0.003}	-1.7 {-0.067}	-
D	7	1.5 {0.059}	3.0 {0.12}	0 {0}	-
E	8	6.0 {0.24}	8.0 {0.31}	4.0 {0.16}	2.0 {0.079}
F	9	1.5 {0.059}	2.5 {0.098}	0.5 {0.02}	-
G	10	0 {0}	1.0 {0.039}	-	-
G	11	0.5 {0.02}	1.2 {0.047}	-0.5 {-0.02}	-
H	12	0 {0}	2.0 {0.079}	-2.0 {-0.079}	-
I	13	3.5 {0.14}	4.5 {0.18}	2.5 {0.098}	1.0 {0.039}
I	14	0 {0}	1.0 {0.039}	-1.0 {-0.039}	-
