CYLINDER HEAD ASSEMBLY (I)

id011000504300

Special Service Tool (SST)

49 B012 016

Attachment
49 0636 100B

Valve spring lifter arm
49 B012 0A2A

Pivot
49 JE02 0A2

Universal valve tool
(Europe only)
—
—

Replacement Part

Valve seal

Quantity: 16

Location of use: Valve guide

Oil and Chemical Type

Engine oil

Type: Recommended oil

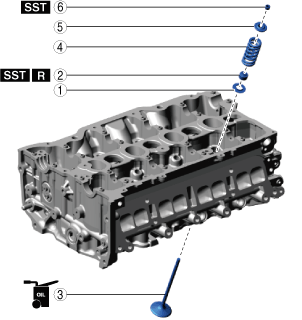

1.  Assemble in the order indicated in the table.

btstze00000019

1
Lower valve spring seat
2
Valve seal
(See Valve Seal Assembly Note.)
3
Valve
4
Valve spring
(See Valve Spring Assembly Note.)
5
Upper valve spring seat
6
Valve keeper
(See Valve Keeper Assembly Note.)


Valve Seal Assembly Note

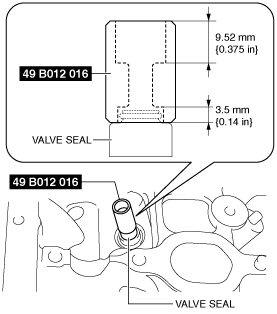

1.  Press in the valve seal to the valve guide using the SST by hand.

bpe1ze00000057

Valve seal identification color
IN: GREEN
EX: GRAY


Valve Spring Assembly Note

Caution
•  The valve springs differ depending on the IN and EX sides.Therefore, verify the free length or identification paint beforehand and inspect the valve springs.
btstze00000020

1.  Assemble the valve spring with the small diameter side of the valve spring facing upward.


Valve Keeper Assembly Note

1.  Install the valve keeper using the SST.

When using the SSTs (49 0636 100B, 49 B012 0A2)

bpe7ze00000014

When using the SST (49 JE02 0A2) (Europe only)

bpe1ze00000035
