MEASUREMENT/ADJUSTMENT VALUE INPUT SHEET [EW6A-EL/EW6AX-EL]

id0517006653l4

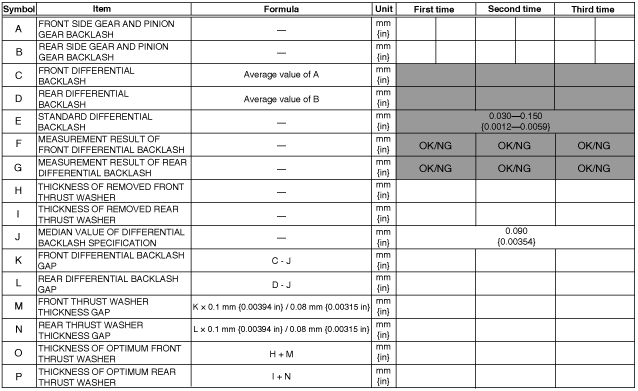

Differential Backlash Measurement/Adjustment

bfw2za00001170

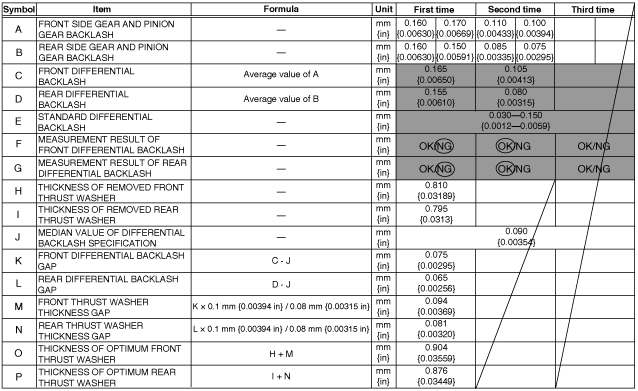

Description example

bfw2za00000004

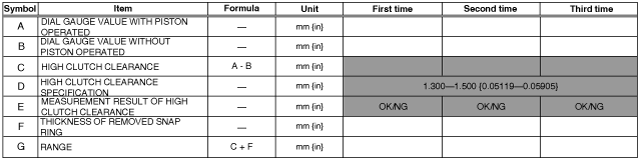

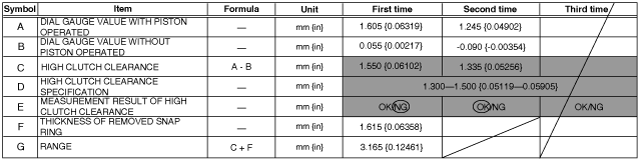

High Clutch Clearance Measurement/Adjustment

azzzcw00000066

Description example

azzzcw00000067

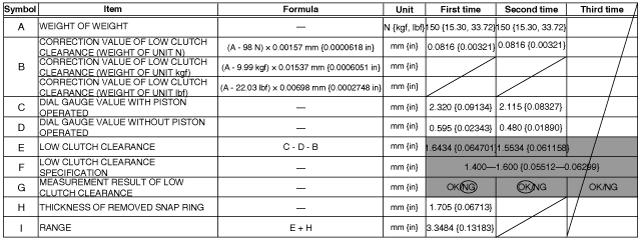

Low Clutch Clearance Measurement/Adjustment

bfw2za00000018

Description example

bfw2za00000019

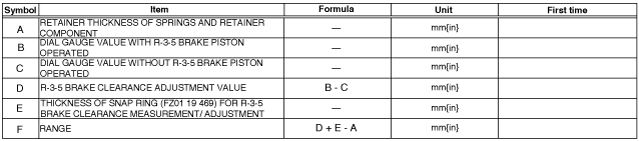

R-3-5 Brake Clearance Measurement/Adjustment

azzzcw00000072

Description example

azzzcw00000073

2-6 Brake Clearance Measurement/Adjustment

bfw2za00000020

Description example

bfw2za00000021

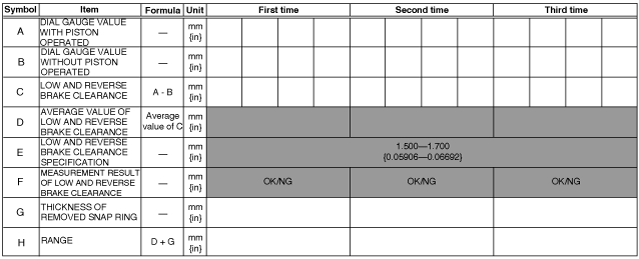

Low and Reverse Brake Clearance Measurement/Adjustment

bfw2za00000022

Description example

bfw2za00000023

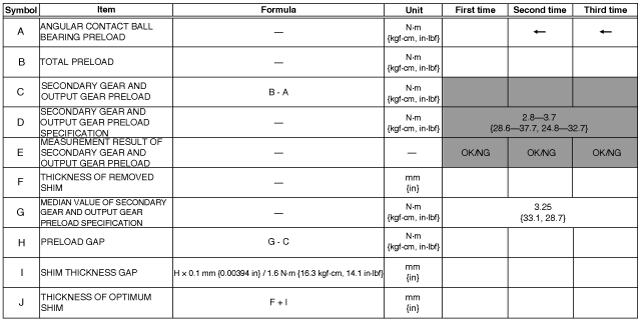

Secondary Gear and Output Gear Preload Measurement/Adjustment [EW6A-EL]

azzzcw00000076

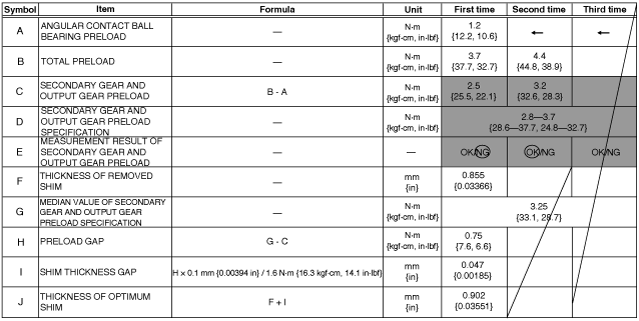

Description example

azzzcw00000077

Secondary Gear and Output Gear Preload Measurement/Adjustment [EW6AX-EL]

bfw2za00001177

Description example

bfw2za00001178

Ring Gear and Differential Preload Measurement/Adjustment [EW6A-EL]

bfw2za00000173

Description example

bfw2za00000174

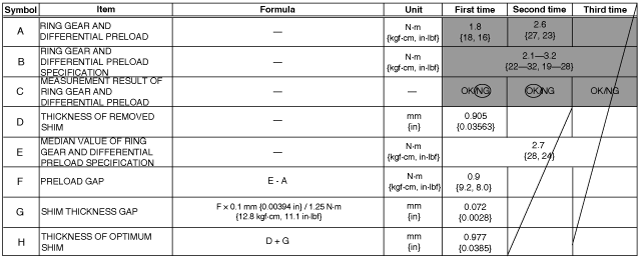

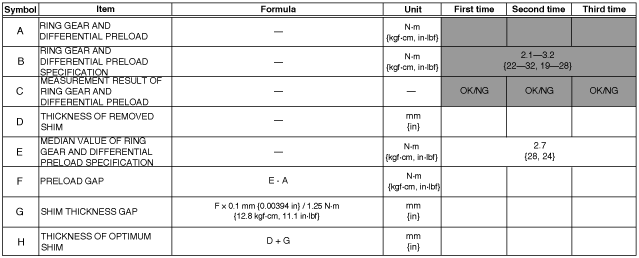

Ring Gear and Differential Preload Measurement/Adjustment [EW6AX-EL]

bfw2za00001171

Description example

bfw2za00001172

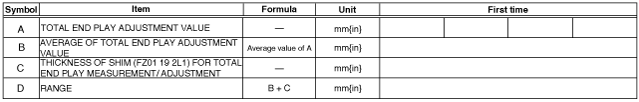

Total End Play Measurement/Adjustment

azzzcw00000080

Description example

azzzcw00000081
