SECONDARY GEAR AND OUTPUT GEAR DISASSEMBLY

id051700661000

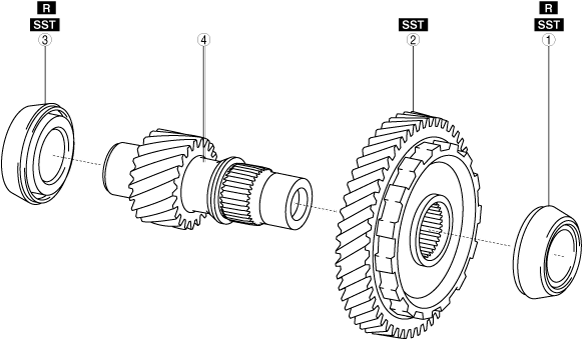

Structural View

bgw2za00000121

1
Tapered roller bearing (transaxle case side)
2
Secondary gear
3
Tapered roller bearing (converter housing side)
4
Output gear


Disassembly Procedure

1.  Perform the following inspection:

Caution
•  If there is no malfunction based on the results of the inspection, it not necessary to disassemble the secondary gear and output gear.
•  Visual inspection of parts (See VISUAL INSPECTION OF PARTS)
•  Secondary gear and output gear inspection (See SECONDARY GEAR AND OUTPUT GEAR INSPECTION)
•  If there is a malfunction, disassemble the secondary gear and output gear and replace the malfunctioning part with a new part.

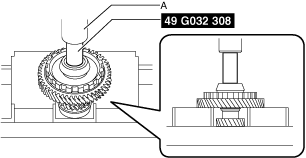

2.  Using the SST and press, remove the secondary gear and the tapered roller bearing (transaxle case side).

bgw2za00000203

A  :Press
azzjjw00000948
A  :Tapered roller bearing (transaxle case side)
B  :Secondary gear

3.  Using the SSTs and press, remove the tapered roller bearing (converter housing side).

bgw2za00000204

A  :Press
bgw3ja00000206

4.  Clean the disassembled parts. (See AUTOMATIC TRANSAXLE CLEANING.)
