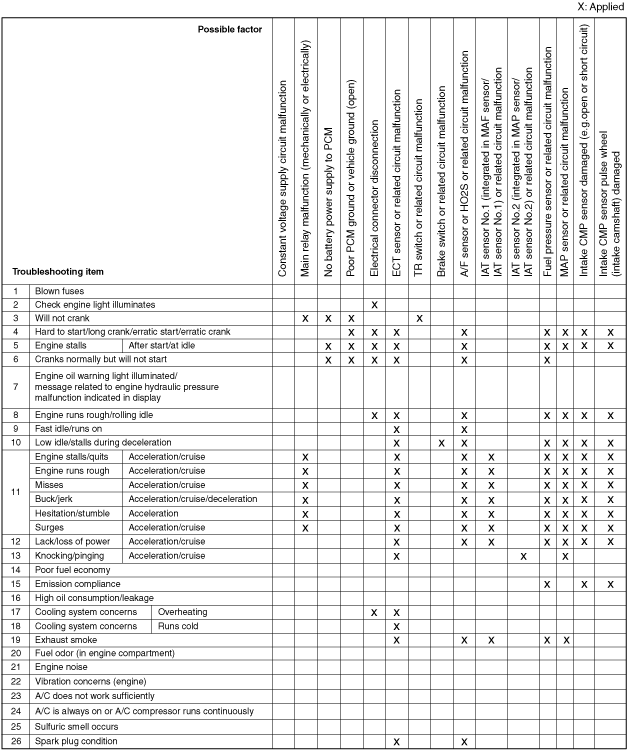

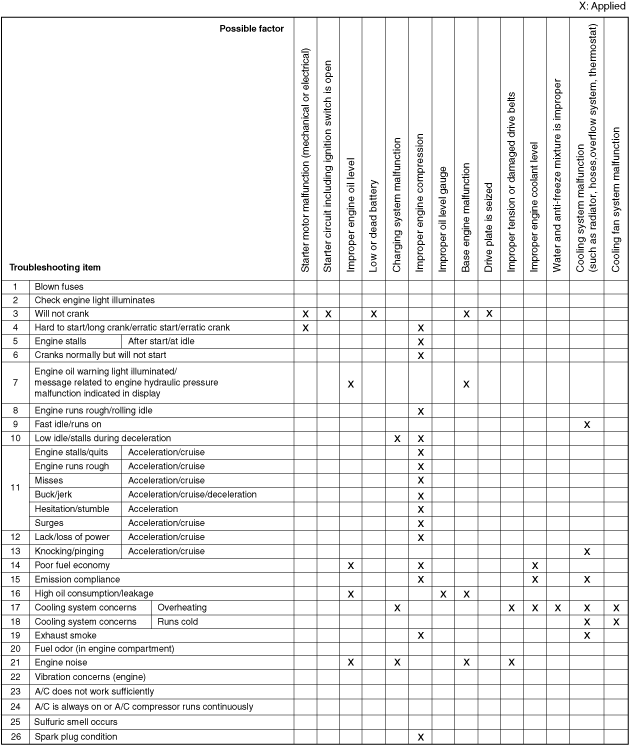

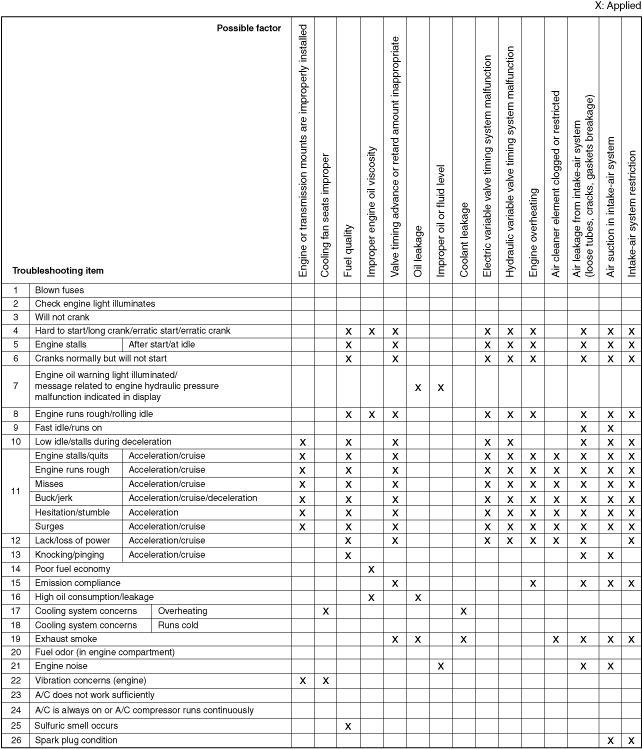

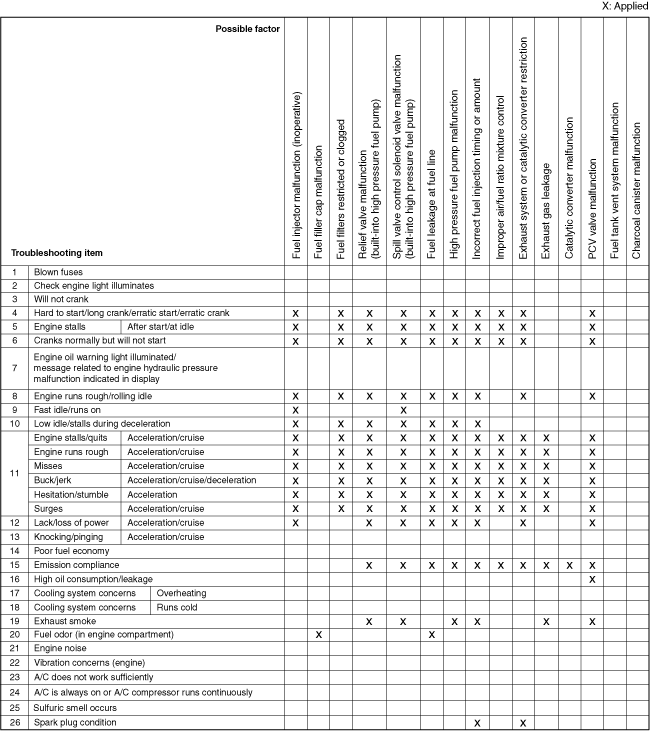

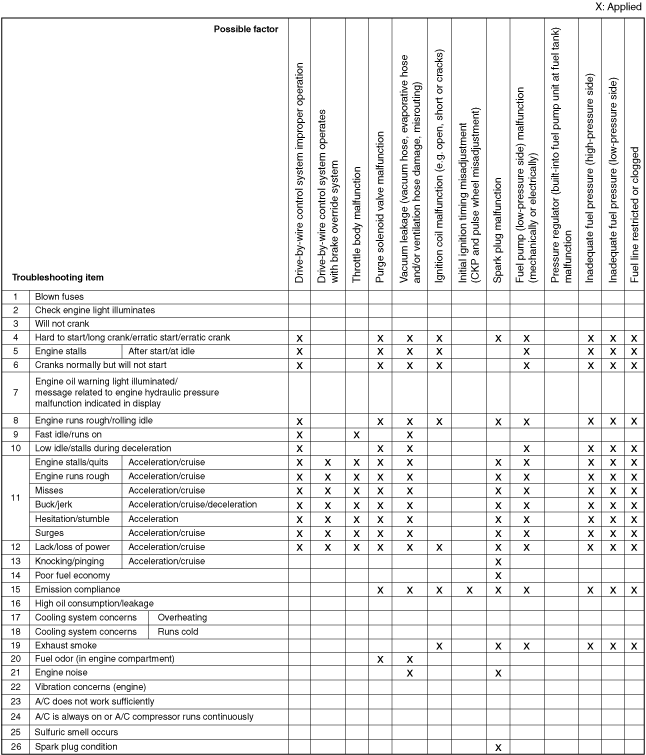

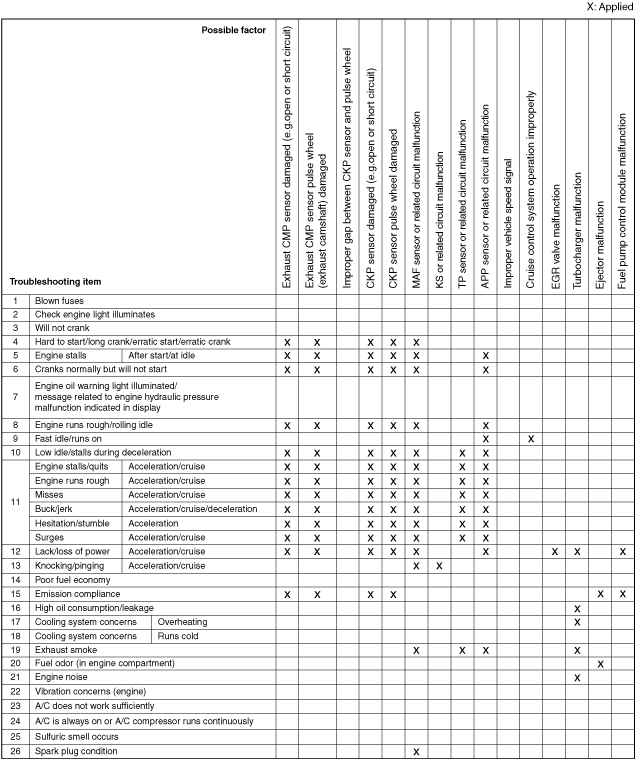

QUICK DIAGNOSTIC CHART [SKYACTIV-G 2.5T]
id0103q4800600
Note
• For the relationship between each engine control and related parts, refer to the new vehicle introduction.
am6zzw00018292
am6zzw00018293
am6zzw00018294
am6zzw00018295
am6zzw00018296
am6zzw00018297
am6zzw00018298
am6zzw00018299
