QUICK DIAGNOSTIC CHART [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)]

id0103q6800600

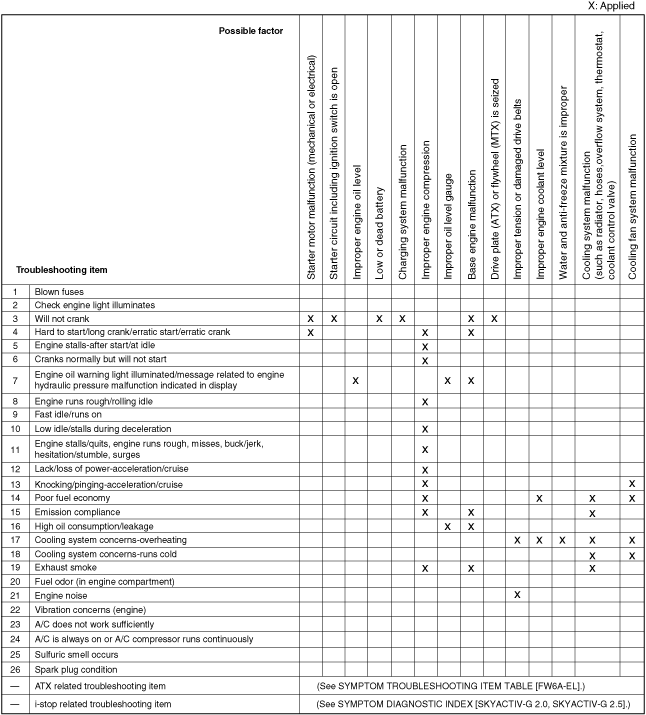

am6zzw00018308

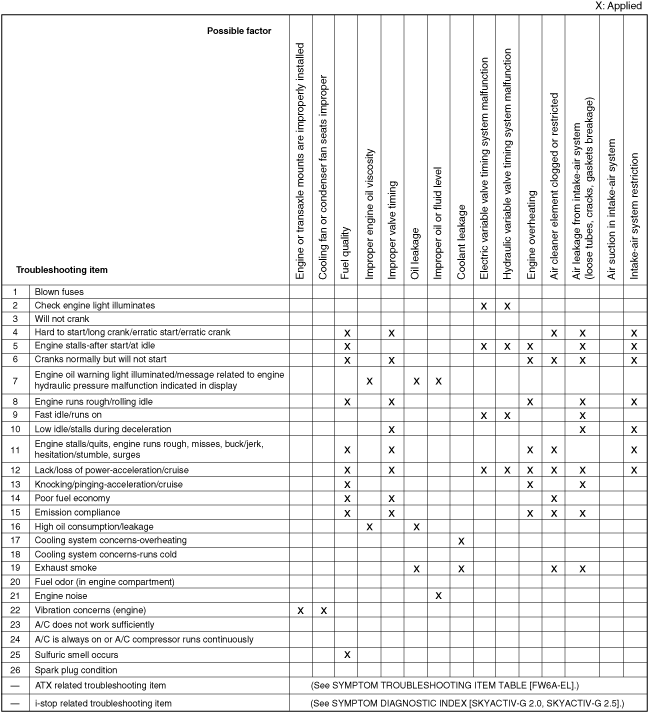

am6zzw00018309

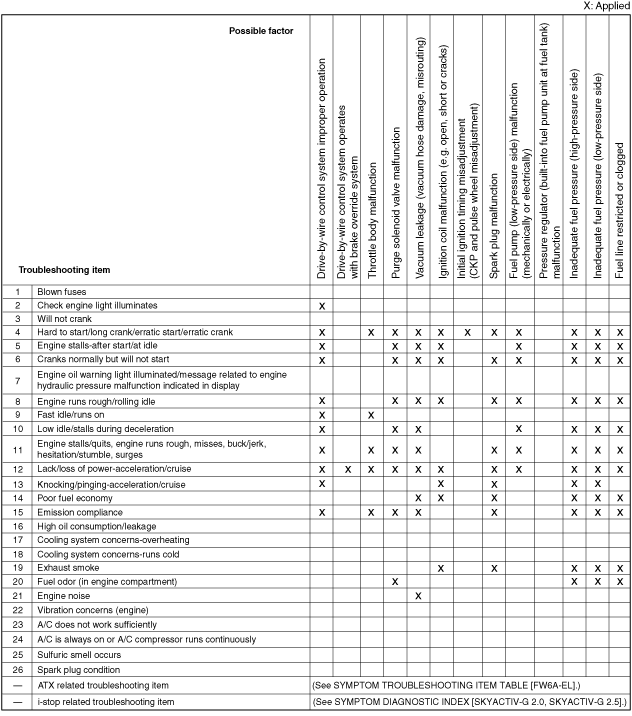

am6zzw00018310

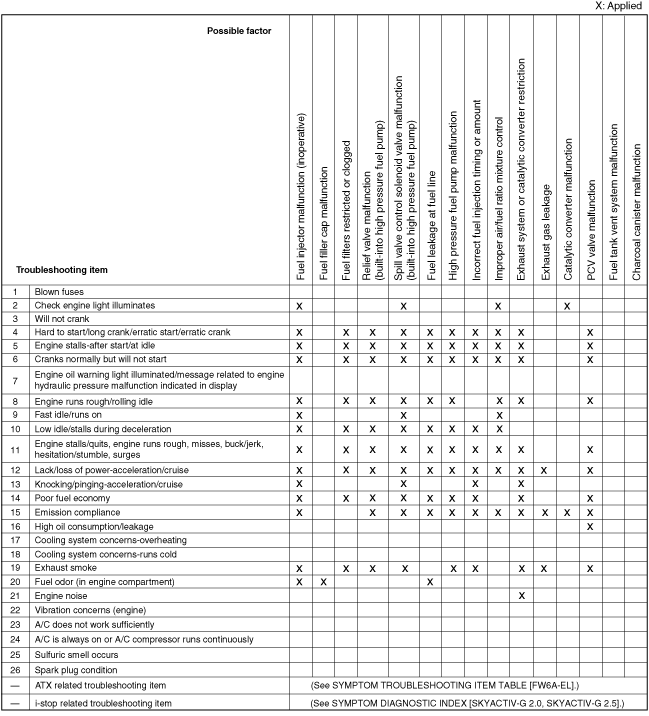

am6zzw00018311

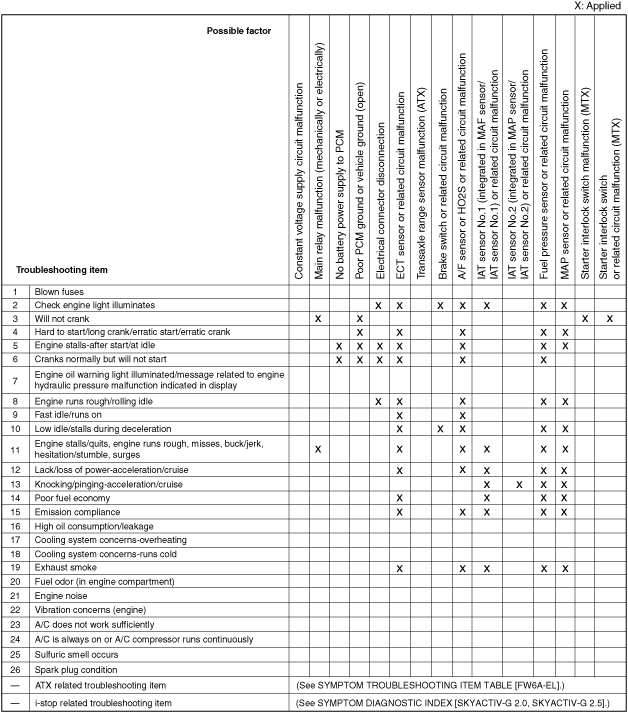

am6zzw00018312

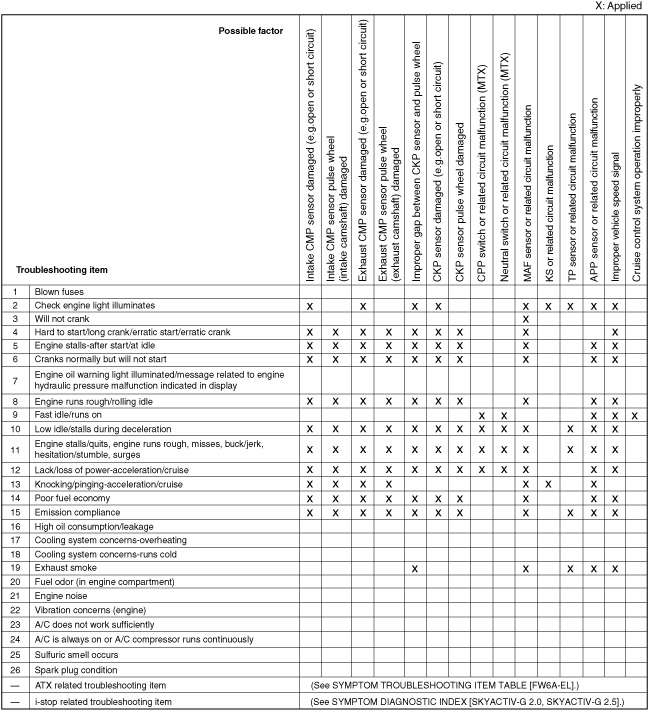

am6zzw00018313

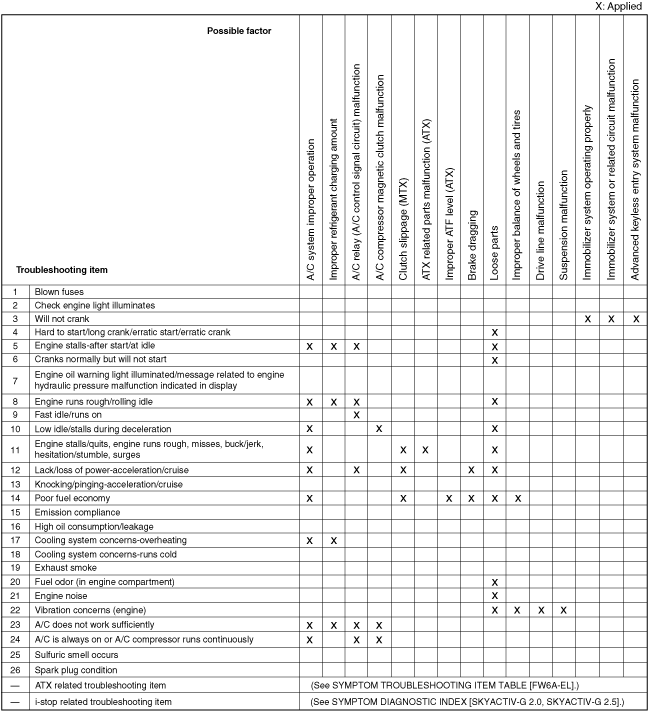

am6zzw00018314

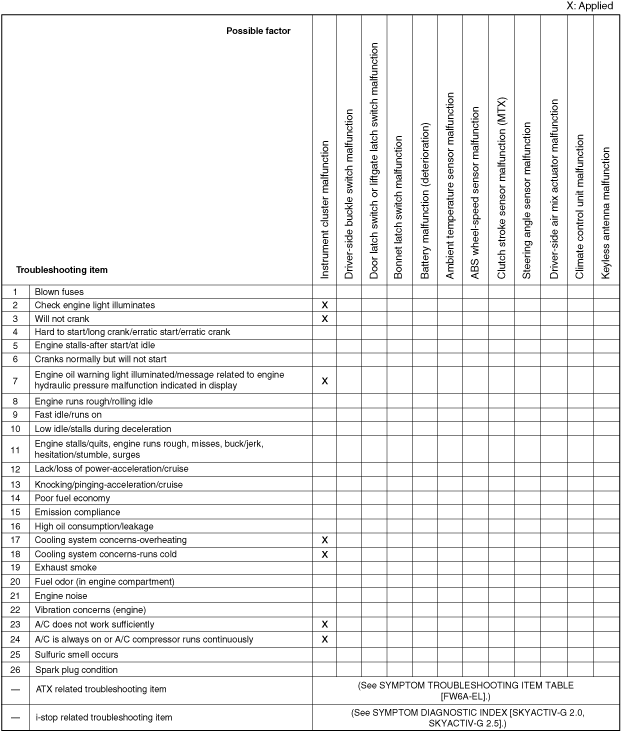

am6zzw00018315
