VALVE MECHANISM [SKYACTIV-D 2.2]
id0110s5001200
Outline
• A DOHC type valve system has been adopted and consists of four valves (two intake valves and two exhaust valves) per cylinder for a total of 16 valves operated by two camshafts.

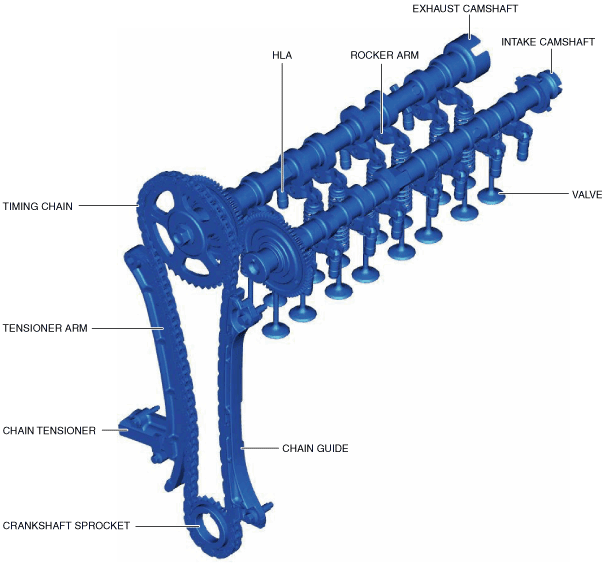

Structural View
ac8wzn00000097
