CAMSHAFT [SKYACTIV-D 2.2]

id0110s5001400

Purpose, Function

• The camshaft is rotated by receiving the rotation force of the crankshaft via the timing chain. The valve is opened and closed according to the cam shape at this time.

Construction

• The camshaft is installed to the cylinder head.

• The cam has been induction hardened. As a result, resistance to abrasion has been enhanced.

ac8wzn00000099

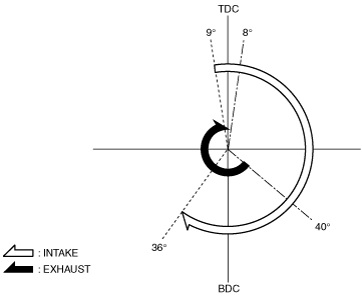

Valve timing

ac8wzn00000100

Valve timing

IN

Open

BTDC (°)

9

Closed

ABDC (°)

36

EX

Open

BBDC (°)

40

Closed

ATDC (°)

8

Valve timing	IN	Open	BTDC (°)	9
	IN	Closed	ABDC (°)	36
	EX	Open	BBDC (°)	40
	EX	Closed	ATDC (°)	8
