FRONT OIL SEAL REPLACEMENT [SKYACTIV-D 2.2]


id0110s5800800

Special Service Tool (SST)

49 S120 710

Coupling flange holder
49 U027 003

Oil seal installer

Replacement Part

Front oil seal

Quantity: 1

Location of use: Engine front cover

Oil and Chemical Type

Engine oil

Type: Recommended oil

Warning
•  A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

1.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Remove the front splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION.)

3.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

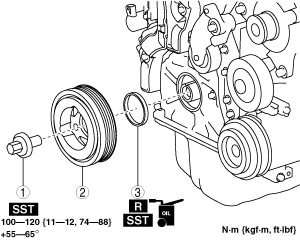

ac5wzw00005093

1
Crankshaft pulley lock bolt
2
Crankshaft pulley
3
Front oil seal


Crankshaft Pulley Lock Bolt Removal Note

Note
•  Perform the crankshaft pulley lock bolt removal with at least one other person.

1.  Install the SST to the crankshaft pulley using the bolts of the following specification.

SST securing bolt specification
M12 x 1.75 strength classification of 8.8 or more, length 48—50 mm {1.89—1.96 in} (length can be adjusted by adding washer)
SST securing bolt tightening torque
15 N·m {1.5 kgf·m, 11 ft·lbf}
Caution
•  To prevent damage to the crankshaft pulley and engine front cover, always use a bolt and tightening torque of the specification above to install the SSTs to the crankshaft pulley.
•  After installing the SSTs, verify that the SST securing bolts do not contact the engine front cover.

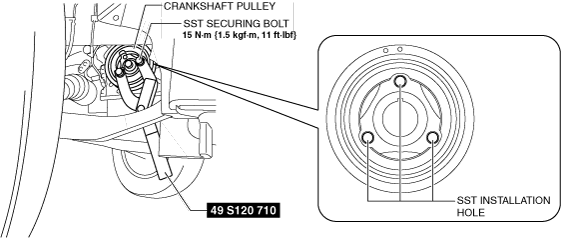

ac5wzw00005227
Note
•  If a bolt with a length of 50 mm {2.0 in} or more is used, add the appropriate washer and adjust the length to 48—50 mm {1.89—1.96 in} to use.
Example of use
―  Using the bolt (M12 x 1.75 length 60 mm {2.4 in}) supplied with the SST 49 S011 102A (crankshaft lock tool): Add a washer with a 10 mm {0.39 in} thickness and adjust the length of the SST securing bolt to 50 mm {2.0 in}.
ac5wzw00009346

2.  One person connects an extension pipe of a suitable length with 100 mm {3.94 in} or more to the SST to prevent the crankshaft pulley from rotating.

ac5wzw00009347

3.  Another person loosens the crankshaft pulley lock bolt and removes it.

am6zzw00010866

4.  Remove the SST.


Front Oil Seal Removal Note

1.  Cut the front oil seal lip using a utility knife.

2.  Remove the front oil seal using a flathead screwdriver with the tip protected by a clean cloth to prevent damage to the crankshaft.

ac5wzw00005098


Front Oil Seal Installation Note

1.  Apply clean engine oil to the inner surface of a new front oil seal.

2.  Insert the front oil seal into the engine front cover by hand.

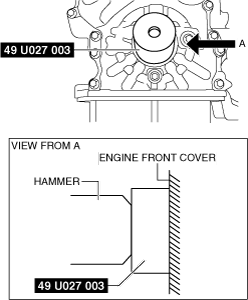

3.  Tap the front oil seal in evenly using the SST and a hammer.

ac5wzw00005099

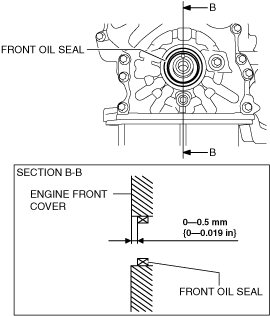

ac5wzw00005100

Front oil seal press on amount
0—0.5 mm {0—0.019 in} from edge surface of engine front cover


Crankshaft Pulley Lock Bolt Installation Note

Note
•  Tighten the crankshaft pulley lock bolt in two steps. Perform the second step for tightening to a specified angle using two people.

1.  Install the crankshaft pulley.

2.  Install the SST to the crankshaft pulley using the bolts of the following specification.

SST securing bolt specification
M12 x 1.75 strength classification of 8.8 or more, length 48—50 mm {1.89—1.96 in} (length can be adjusted by adding washer)
SST securing bolt tightening torque
15 N·m {1.5 kgf·m, 11 ft·lbf}
Caution
•  To prevent damage to the crankshaft pulley and engine front cover, always use a bolt and tightening torque of the specification above to install the SSTs to the crankshaft pulley.
•  After installing the SSTs, verify that the SST securing bolts do not contact the engine front cover.

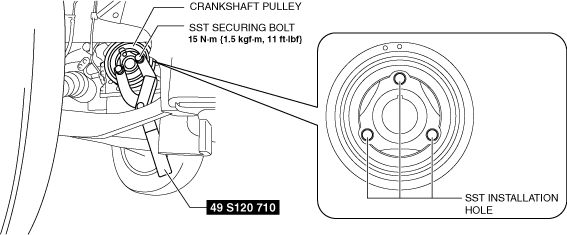

ac5wzw00005101
Note
•  If a bolt with a length of 50 mm {2.0 in} or more is used, add the appropriate washer and adjust the length to 48—50 mm {1.89—1.96 in} to use.
Example of use
―  Using the bolt (M12 x 1.75 length 60 mm {2.4 in}) supplied with the SST 49 S011 102A (crankshaft lock tool): Add a washer with a 10 mm {0.39 in} thickness and adjust the length of the SST securing bolt to 50 mm {2.0 in}.
ac5wzw00009346

3.  Connect an extension pipe of a suitable length of 100 mm {3.94 in} or more to the SST to prevent the crankshaft pulley from rotating.

ac5wzw00009347

4.  Tighten the crankshaft pulley lock bolt.

am6zzw00010868

Tightening torque
First step: 100—120 N·m {11—12 kgf·m, 74—88 ft·lbf}

5.  Place a paint mark on the crankshaft pulley lock bolt and crankshaft pulley as shown in the figure to tighten the bolt to the specified angle correctly.

ac5wzw00005104

6.  One person holds the SST and the other person tightens the crankshaft pulley lock bolt to the specified angle.

am6zzw00010869

Tightening torque
Second step: 55—65°

7.  Remove the SST.
