VALVE MECHANISM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]


id0110s7001200


Outline

•  A DOHC type valve system has been adopted and consists of four valves (two intake valves and two exhaust valves) per cylinder for a total of 16 valves operated by two camshafts.

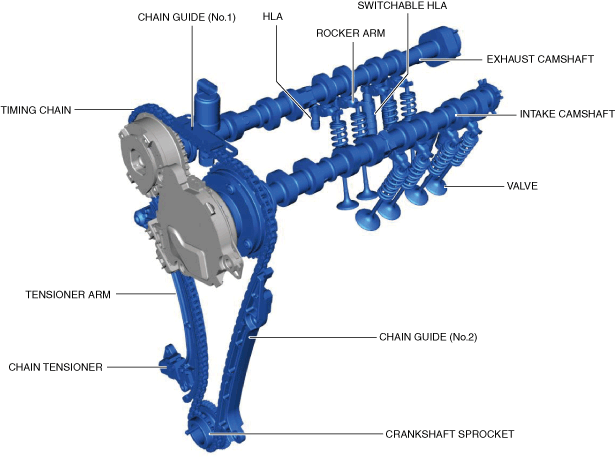

Structural View

ac5wzn00004482
