OIL CONTROL VALVE (OCV) [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)]

id0110s9001600

Purpose, Function

• The OCV switches the oil passage to the hydraulic variable valve timing actuator to control the opening/closing period of the exhaust valve.

Construction

• The OCV is installed to the exhaust camshaft cap (No.1).

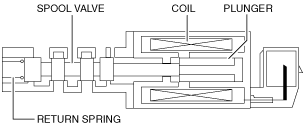

• The OCV consists of a spool valve which switches the engine oil passage and a plunger, coil, and return spring which operate the spool valve.

am3uun00001866

Operation

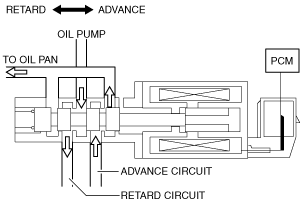

At retard

• The spool valve is moved to the retard side by the signal from the PCM and engine oil is lead to the retard oil passage of the exhaust camshaft.

am3uun00001867

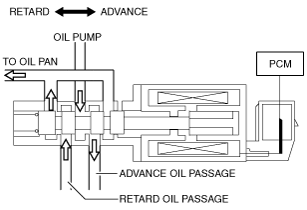

At advance

• The spool valve is moved to the advance side by the signal from the PCM and engine oil is lead to the advance oil passage of the exhaust camshaft.

am3uun00001868

Middle point maintenance

• The spool valve is moved to the closed position of the oil passage to the exhaust camshaft by the signal from the PCM.

• The construction is designed to supply a small amount of oil to the advance oil passage even while the middle point is maintained, improving holding stability while at low oil pressure.

am3uun00001869

Fail-safe

DTC

Fail-safe

P0A0F:00

• Flashes the i-stop warning light (amber) and inhibits engine-stop by operating the i-stop function. (Vehicle with i-stop)

P2090:00

• Set the exhaust variable valve timing control to the maximum advanced position.

P2091:00

DTC	Fail-safe
P0A0F:00	• Flashes the i-stop warning light (amber) and inhibits engine-stop by operating the i-stop function. (Vehicle with i-stop)
P2090:00	• Set the exhaust variable valve timing control to the maximum advanced position.
P2091:00
