FRONT OIL SEAL REPLACEMENT [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)]

id0110s9800800

Warning
•  A hot engine can cause severe burns. Turn off the engine and wait until it is cool before servicing.

1.  Remove the front under cover No.2. (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Remove the front splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION.)

3.  Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)

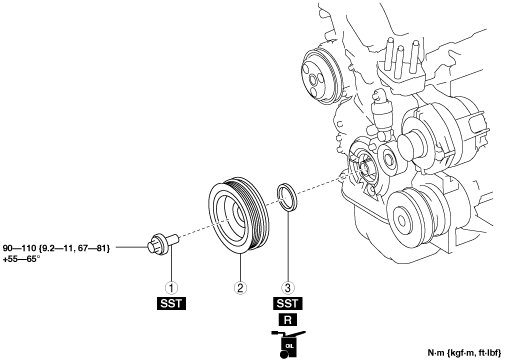

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

am6xuw00006599

1
Crankshaft pulley lock bolt
(See Crankshaft Pulley Lock Bolt Removal Note.)
(See Crankshaft Pulley Lock Bolt Installation Note.)
2
Crankshaft pulley
3
Front oil seal
(See Front Oil Seal Removal Note.)
(See Front Oil Seal Installation Note.)


Crankshaft Pulley Lock Bolt Removal Note

Caution
•  To prevent damage to the crankshaft pulley, protect the crankshaft pulley with a clean cloth so that the bar part (205-072) of the SST does not contact the crankshaft pulley.
•  To prevent damage to the engine front cover, be careful not to allow the tab part (49 B011 105) of the SST to get caught between the crankshaft pulley and the engine front cover.

1.  Hold the crankshaft pulley using the SSTs.

ac5uuw00000501

2.  Remove the crankshaft pulley lock bolt.


Front Oil Seal Removal Note

1.  Cut the front oil seal lip using a utility knife.

2.  Remove the front oil seal using a flathead screwdriver with the tip protected by a clean cloth to prevent damage to the crankshaft.

am6xuw00006600


Front Oil Seal Installation Note

1.  Apply clean engine oil to the inner surface of a new front oil seal.

2.  Insert the front oil seal into the engine front cover by hand.

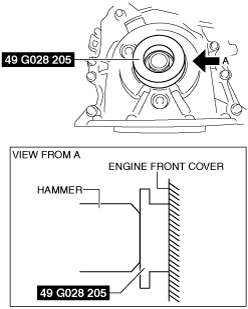

3.  Tap the front oil seal in evenly using the SST and a hammer.

am3uuw00008830
am6xuw00006601

Front oil seal press on amount
0—1.0 mm {0—0.039 in} from edge surface of engine front cover


Crankshaft Pulley Lock Bolt Installation Note

Caution
•  To prevent damage to the crankshaft pulley, protect the crankshaft pulley with a clean cloth so that the bar part (205-072) of the SST does not contact the crankshaft pulley.
•  To prevent damage to the engine front cover, be careful not to allow the tab part (49 B011 105) of the SST to get caught between the crankshaft pulley and the engine front cover.

1.  Hold the crankshaft pulley using the SSTs.

ac5uuw00000502

2.  Tighten the crankshaft pulley lock bolt in the order shown in the following two steps.

Tightening torque
Step 1: 90—110 N·m {9.2—11 kgf·m, 67—81 ft·lbf}
Step 2: 55—65°
