OIL STRAINER [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]
id0111q9002400
Purpose, Function
• The oil strainer suctions the engine oil in the oil pan using the oil pump vacuum. The engine oil is filtered by the internal filter at that time.

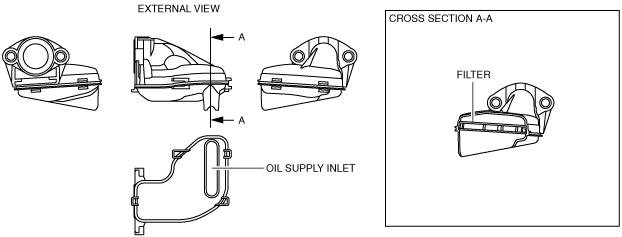

Construction

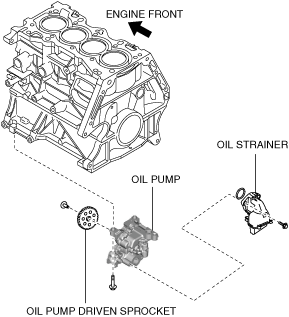

• The oil strainer is installed on the suction port of the oil pump.
• The oil strainer has a filter in the inside.
