OIL PAN [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)]

id0111r1002300

Purpose, Function

• The engine oil required for lubrication in the engine accumulates in the oil pan.

Construction

• The oil pan is installed on the lower part of the cylinder block.

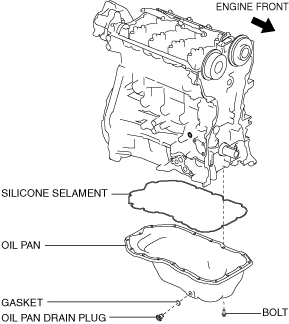

SKYACTIV-G 2.0

ac5uun00003838

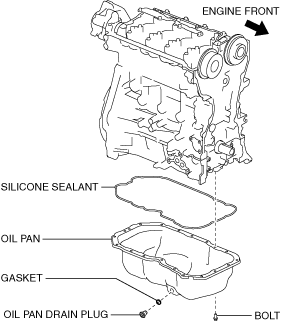

SKYACTIV-G 2.5

ac5wzn00004880

• Silicone sealant with excellent sealing has been adopted for the oil pan gasket.
