OIL STRAINER [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)]

id0111r1002400


Purpose, Function

•  The oil strainer suctions the engine oil in the oil pan using the oil pump vacuum. The engine oil is filtered by the internal filter at that time.

Construction

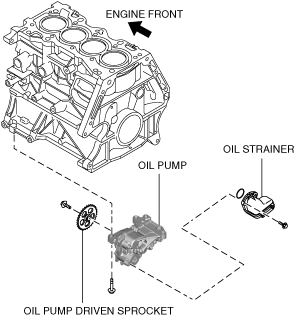

•  The oil strainer is installed on the suction port of the oil pump.

SKYACTIV-G 2.0

am6zzn00005274

SKYACTIV-G 2.5

am6zzn00005275
•  The oil strainer has a filter in the inside.

SKYACTIV-G 2.0

ac5wzn00001009

SKYACTIV-G 2.5

ac5wzn00003508
