OIL COOLER [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)]
id0111r1101100
Purpose, Function
• The oil cooler routes engine oil and engine coolant through the interior and disperses the engine oil heat using the engine coolant. As a result, the oil temperature is maintained properly to reduce the engine oil deterioration.

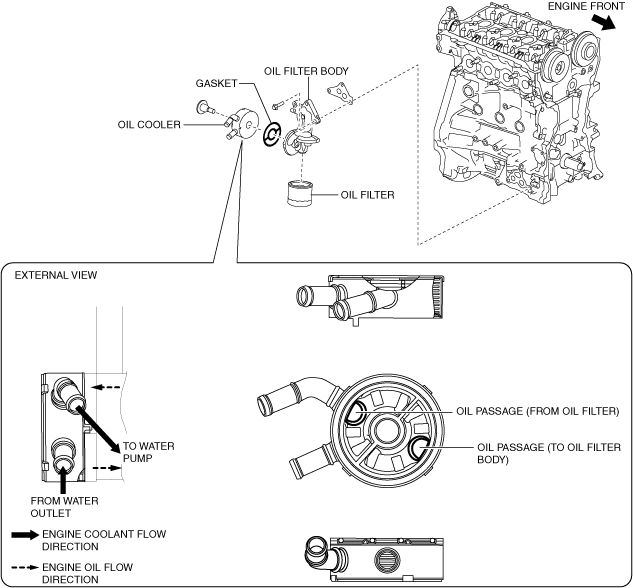

Construction
• A 9-layered type water-cooled has been adopted.
• The oil cooler is attached to the oil filter body.
