COOLING FAN COMPONENT [SKYACTIV-G 2.5T]

id0112q5003200

Purpose, Function

• The cooling fan rotates according to vehicle conditions and enhances the cooling efficiency of the radiator.

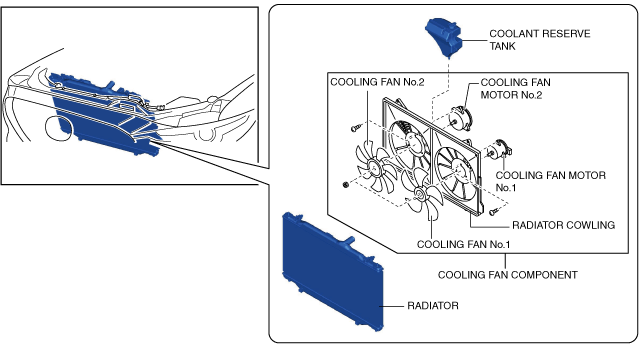

Structural View

am6xun00004043

Operation

• For electrical fan control details, refer to CONTROL SYSTEM. (See ELECTRICAL FAN CONTROL [SKYACTIV-G 2.5T].)

Fail-safe

• Not applicable
