•  The radiator disperses the engine coolant heat flowing internally by receiving air flow against the vehicle while it is driven or produced by the cooling fan.

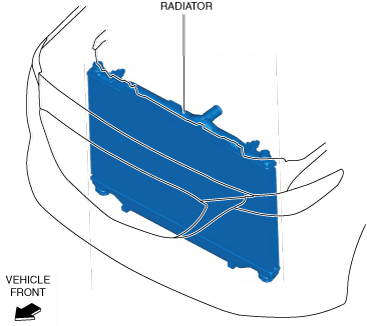

•  The radiator is located at the front part in the engine compartment.

am6xun00004046

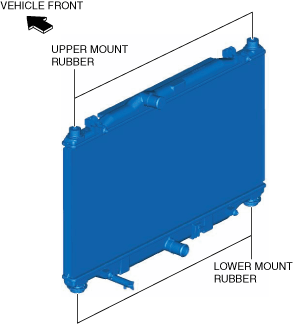

•  Vibration is absorbed via the four supporting mount rubbers attached to the radiator.

am6xun00004047

•  A down-flow type radiator has been adopted.

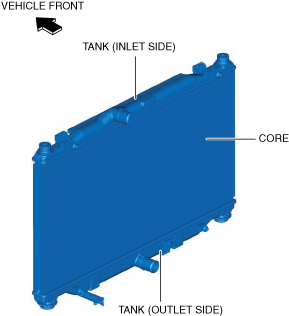

Without oil cooler No.2

am6xun00004048

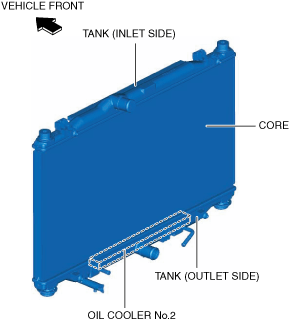

With oil cooler No.2

am6xun00004049

•  Corrugated fins have been adopted to the core fins.

•  A plastic tank material and aluminum core material have been adopted to achieve weight reduction.

•  An oil cooler No.2 is built into the tank (outlet side). (See OIL COOLER [GW6A-EL, GW6AX-EL].) (with oil cooler No.2)
