COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0112q5801900

Warning

• Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot. Scalding engine coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system.

• Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise to the first stop. Step back while the pressure escapes.

• When you are sure all the pressure is gone, press down on the cap using the cloth, turn it, and remove it.

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].)

3. Remove the following parts as a single unit: (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

• Air hose

• Air cleaner cover

• Air cleaner element

• Air cleaner case

• Fresh-air duct

4. Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)

5. Remove the wiring harness clips shown in the figure.

am6xuw00010399

am6xuw00010400

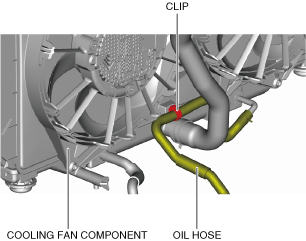

6. Remove the oil hose clip from the cooling fan component. (If equipped)

am6xuw00010401

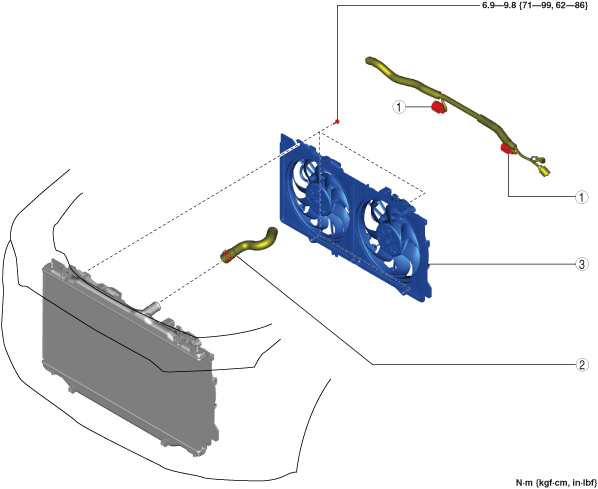

7. Remove in the order indicated in the table.

8. Install in the reverse order of removal.

9. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5T].)

10. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5T].)

am6xuw00010398

1

Cooling fan motor connector

2

Upper radiator hose

3

Cooling fan component

(See Cooling Fan Component Removal Note.)

(See Cooling Fan Component Installation Note.)

Cooling Fan Component Removal Note

1. Remove the cooling fan component from above the engine compartment.

am6zzw00010250

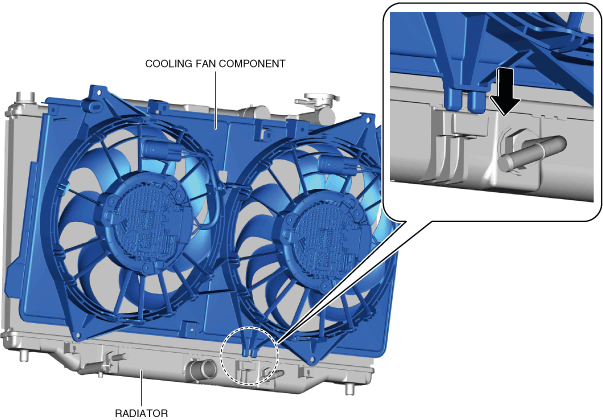

Cooling Fan Component Installation Note

1. Remove the cooling fan component from above the engine compartment.

am6zzw00018109

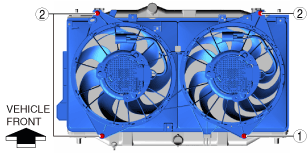

2. Tighten the bolts in the order shown in the figure.

am6xuw00012493

1	Cooling fan motor connector
2	Upper radiator hose
3	Cooling fan component (See Cooling Fan Component Removal Note.) (See Cooling Fan Component Installation Note.)
