COOLANT CONTROL VALVE [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)]

id0112q7158800

Outline

• The coolant control valve adjusts the coolant control valve opening angle and supplies engine coolant to the appropriate engine coolant passage according to the changes in the engine coolant temperature.

• Further engine warming has been promoted by blocking each water passage while the engine is cool.

Construction

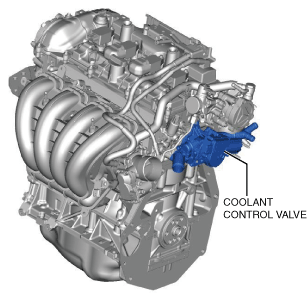

• The coolant control valve is located on the left side of the engine.

ac5uun00003736

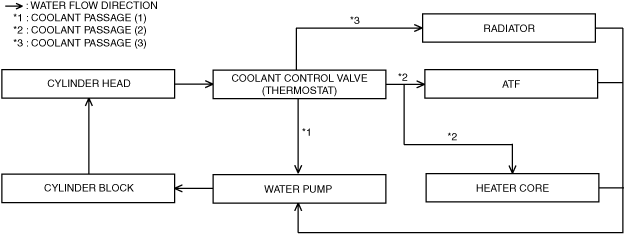

• The coolant control valve feeds engine coolant via 3 engine coolant passages.

Note

• The thermostat is integrated with the coolant control valve. When the engine coolant temperature exceeds the specification, engine coolant is forced to flow into the radiator.

ac5wzn00004572

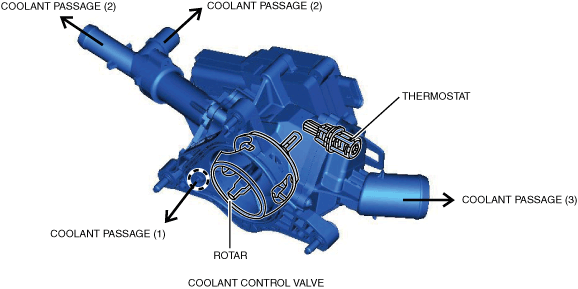

• Engine coolant flows constantly in coolant passage (1).

• At coolant passages (2) and (3), engine coolant flows when the rotor rotates and the rotor opening is aligned to each engine coolant passage outlet.

• The PCM adjusts the coolant control valve opening angle and switches the engine coolant passage according to changes in the engine coolant temperature. For details, refer to the [WATER FLOW CONTROL]. (See WATER FLOW CONTROL [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)].)

ac5wzn00004597
