COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)]

id0112q7801000

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

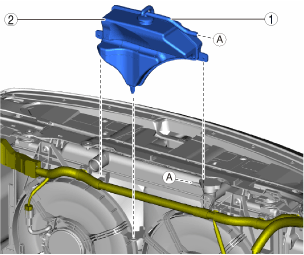

am6xuw00010360

1	Hose
2	Coolant reserve tank (See Coolant Reserve Tank Removal Note.)

Coolant Reserve Tank Removal Note

1.  Remove the wiring harness clips shown in the figure.

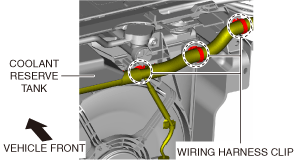

am6xuw00010361

2.  Remove the coolant reserve tank from the radiator cowling tabs shown in the figure by lifting them with a flathead screwdriver.

ac5uuw00000571
