COOLING SYSTEM [SKYACTIV-D 2.2]

id0112s6002800

Outline

• Pump efficiency is improved by changing the water pump impeller to a shroud impeller.

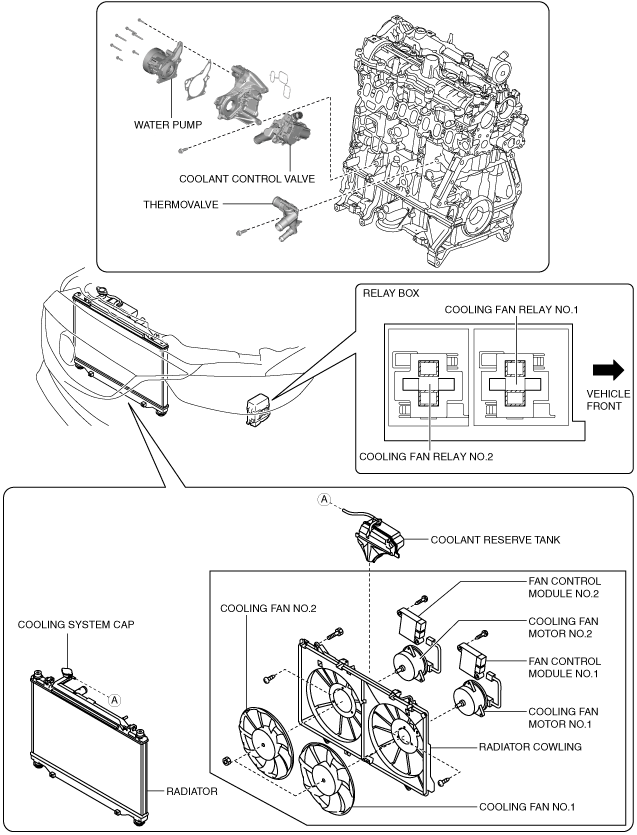

Structural View

am6zzn00005623

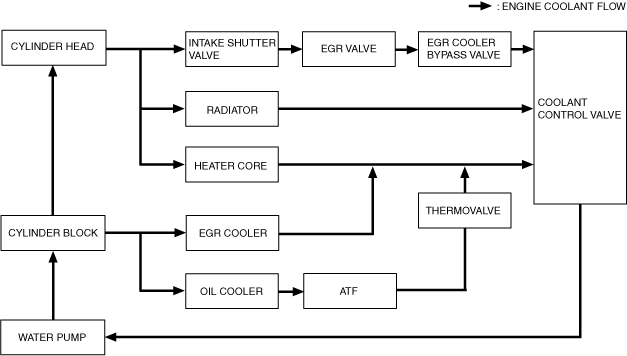

Flow Chart

am6zzn00005742

Structure

• Consists of the following parts:

Water pump	(See WATER PUMP [SKYACTIV-D 2.2].)
Cooling fan relay	(See COOLING FAN RELAY [SKYACTIV-D 2.2].)
Cooling fan component	(See COOLING FAN COMPONENT [SKYACTIV-D 2.2].)
Fan control module	(See FAN CONTROL MODULE [SKYACTIV-D 2.2].)
Cooling system cap	(See COOLING SYSTEM CAP [SKYACTIV-D 2.2].)
Radiator	(See RADIATOR [SKYACTIV-D 2.2].)
Thermovalve	(See THERMOVALVE [SKYACTIV-D 2.2].)
