COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]

id0112s9801900

Warning

• Never remove the cooling system cap or loosen the radiator drain plug while the engine is running, or when the engine and radiator are hot. Scalding engine coolant and steam may shoot out and cause serious injury. It may also damage the engine and cooling system.

• Turn off the engine and wait until it is cool. Even then, be very careful when removing the cap. Wrap a thick cloth around it and slowly turn it counterclockwise to the first stop. Step back while the pressure escapes.

• When you are sure all the pressure is gone, press down on the cap using the cloth, turn it, and remove it.

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

4. Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

5. Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

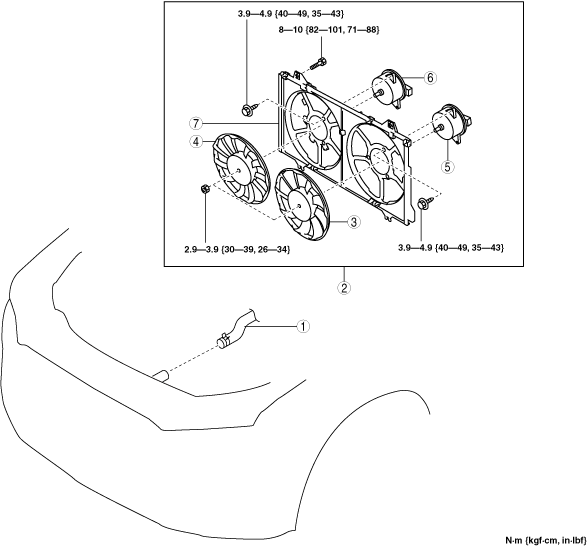

6. Remove in the order indicated in the table.

7. Install in the reverse order of removal.

8. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

9. Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)

am6xuw00010376

1

Upper radiator hose

(See Upper radiator hose Removal Note.)

2

Cooling fan component

(See Cooling Fan Component Removal Note.)

3

Cooling fan No.1

4

Cooling fan No.2

5

Cooling fan motor No.1

6

Cooling fan motor No.2

7

Radiator cowling

Upper radiator hose Removal Note

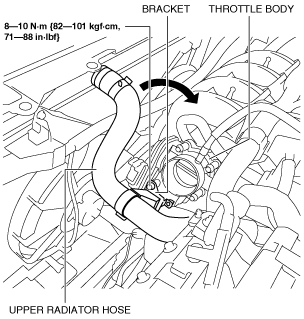

1. Remove the bracket shown in the figure from the throttle body and set the upper radiator hose aside.

ac5uuw00002425

Cooling Fan Component Removal Note

1. Disconnect the connectors from the cooling fan motors.

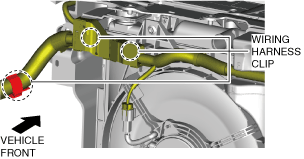

2. Remove the wiring harness clips shown in the figure.

am6xuw00010377

am6xuw00010378

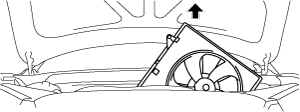

3. Remove the cooling fan component from above the engine compartment.

am6xuw00010379

1	Upper radiator hose (See Upper radiator hose Removal Note.)
2	Cooling fan component (See Cooling Fan Component Removal Note.)
3	Cooling fan No.1
4	Cooling fan No.2
5	Cooling fan motor No.1
6	Cooling fan motor No.2
7	Radiator cowling
