THREE WAY SOLENOID VALVE [SKYACTIV-G 2.5T]
id0113q4259100
Purpose, Function
• The three way solenoid valve switches the flow of air to operate the exhaust manifold variable valve actuator.
Construction

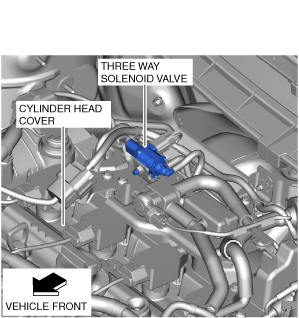

• The three way solenoid valve is located on the cylinder head cover.
• The three way solenoid valve consists of a coil, spring, plunger, and filter.
• The three way solenoid valve is equipped with a filter to prevent foreign matter penetration from the atmosphere.
Operation

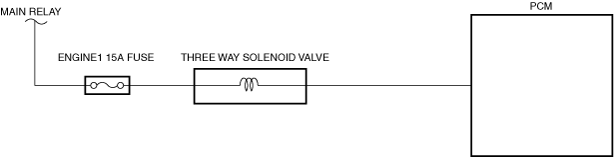

• The plunger is operated by the energization of the three way solenoid valve coil according to the control signal from the PCM.
• The plunger is operated by the spring force when the coil is energized and the passage between the exhaust manifold variable valve actuator and the vacuum pump is connected.
• The three way solenoid valve passes air from the atmosphere through the filter to the exhaust manifold variable valve actuator when the coil is not energized.

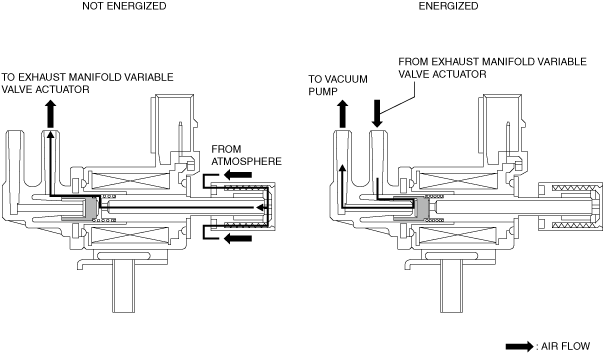

THREE WAY SOLENOID VALVE OPERATION DIAGRAM
Fail-safe
|
DTC
|
Fail-safe
|
|
P004D:00
|
• Stop the supercharging pressure control. (fully open the wastegate valve)
|
