AIR CLEANER [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]


id0113q5003500


Purpose, Function

•  Prevents engine internal damage caused by penetration of dust or foreign material.

Construction

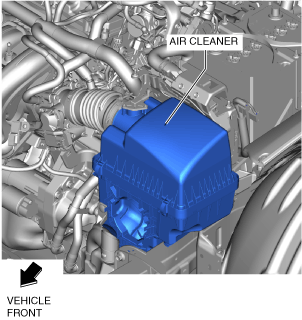

•  The air cleaner is installed in front of the battery.
ac5wzn00004496

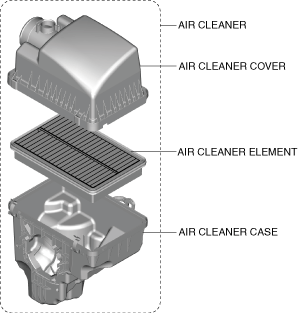

•  The air cleaner consists of the air cleaner case, air cleaner cover, and air cleaner element.
ac5wzn00004497
•  Non-woven fabric (dry type) air cleaner element has been adopted to remove dust and foreign material in the intake air.
ac5wzn00004498
