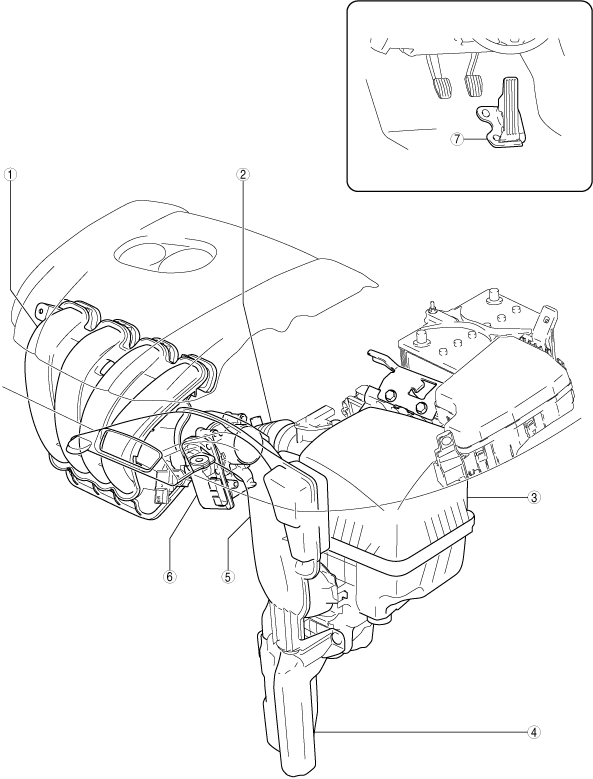

INTAKE-AIR SYSTEM LOCATION INDEX [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]

id0113q7801700

am6xuw00010412

1	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See INTAKE MANIFOLD VACUUM INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
2	Air hose (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
3	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See AIR CLEANER ELEMENT INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
4	Resonance chamber (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
5	Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
6	Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See THROTTLE BODY INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
7	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
