•  Prevents flow-back of the vacuum generated by the vacuum pump operation.

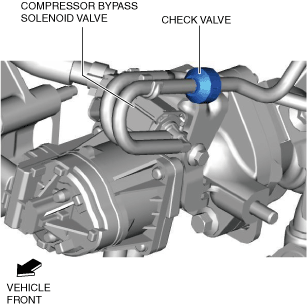

•  The check valve is installed to the vacuum hose near the compressor bypass solenoid valve.

ac8wzn00000142

•  The check valve consists of the body, cover, and umbrella seal.

ac5wzn00002195

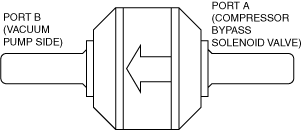

•  A one-way valve is integrated in the check valve.

•  The one-way valve is opened by the vacuum generated from the vacuum pump operation to introduce vacuum to the compressor bypass solenoid valve side.

ac8wzn00000144
