ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0113z7801400

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

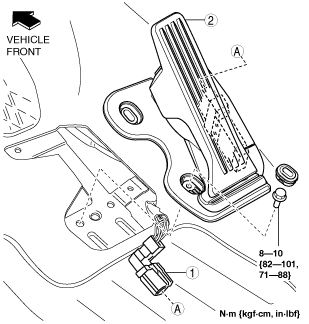

2.  Remove in the order indicated in the table.

ac5uuw00000361

1	APP sensor connector
2	Accelerator pedal

3.  Install in the reverse order of removal.
