•  Serviceability has been improved by easy disconnection/connection of quick release connector.

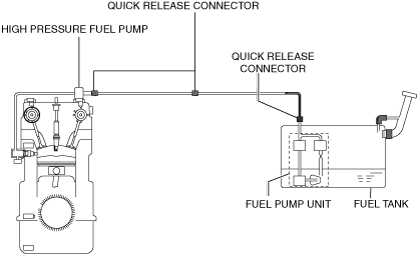

•  Quick release connectors are installed at the following locations.

am6zzn00005292

•  An SST is not used with this type of quick release connector.

•  Consists of a retainer and O-ring.

•  The quick release connector is integrated with the fuel hose and therefore cannot be disassembled.

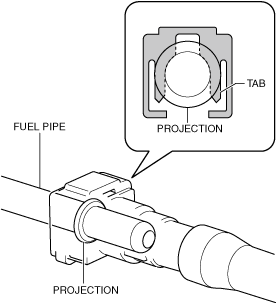

•  The hose does not pull out because the retainer tabs become caught against the ring projection of the fuel pipe.

ac9uun00002788

•  When removing the fuel hose, remove the retainer using a flathead screwdriver as shown in the figure.

ac9uun00002789
