NON-RETURN VALVE [SKYACTIV-G 2.5T]


id0114q4188800


Purpose, Function

•  The non-return valve provides improved safety by preventing fuel from returning to the fuel filler opening.

Construction

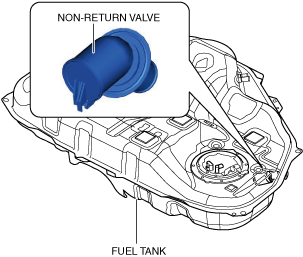

•  The non-return valve is located on the fuel tank.
am6xun00004082
•  A single valve type has been adopted for the non-return valve.
am6xun00004083

Operation

•  Normally, the valve is closed as shown by the dotted outline of the value in the figure. When refueling, it opens as shown by the solid outline due to the force caused by the flow of fuel. When refueling is finished, the valve returns to the normal valve position by spring force.
ac9uun00002795
