FUEL SYSTEM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]

id0114q5002600


Outline

•  A multiple hole type fuel injector has been adopted which provides higher fuel injection accuracy for improved fuel efficiency and output.
•  Piston movement-compression by the 4-head cam inside the high pressure fuel pump heightens the fuel pressure, achieving improved fuel efficiency and output.

Structural View

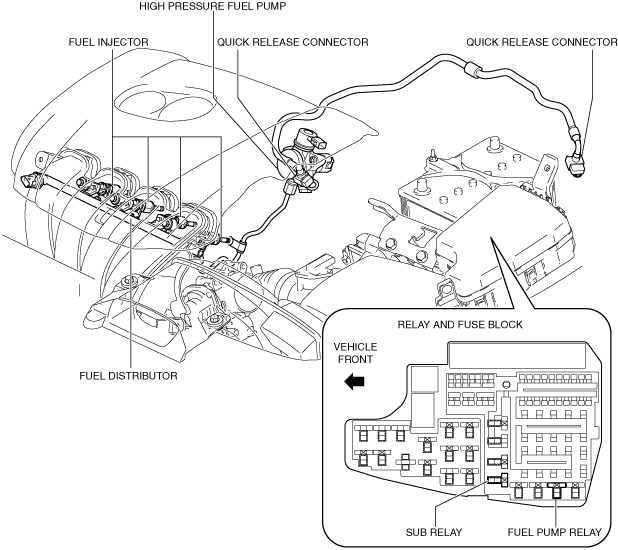

Engine compartment side

am6xun00004661

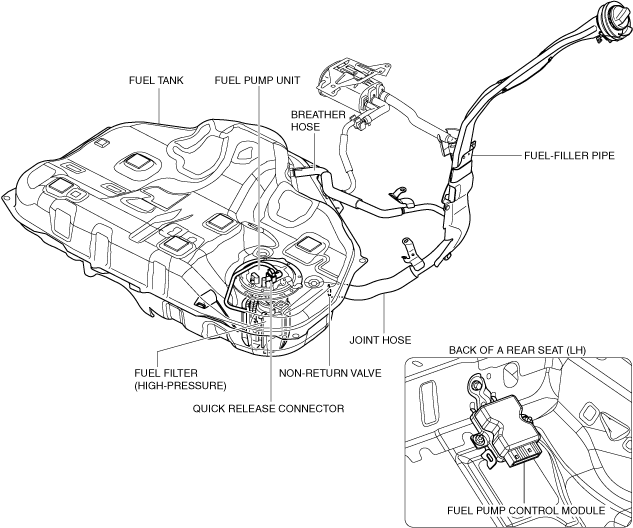

Fuel tank side

am6xun00004664


System Diagram

am6xun00004085

Structure

•  The fuel system consists of the following parts:

Part/System name

Reference
Return-less fuel system
(See RETURNLESS FUEL SYSTEM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Fuel pump unit
(See FUEL PUMP UNIT [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Direct fuel injection system
(See DIRECT FUEL INJECTION SYSTEM [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
High pressure fuel pump
(See HIGH PRESSURE FUEL PUMP [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Fuel distributor
(See FUEL DISTRIBUTOR [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Fuel injector
(See FUEL INJECTOR [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Fuel tank
(See FUEL TANK [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Non-return valve
(See NON-RETURN VALVE [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Fuel pump relay
(See FUEL PUMP RELAY [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Sub relay
(See SUB RELAY [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Fuel pump control module
(See FUEL PUMP CONTROL MODULE [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
Quick connector (fuel system)
(See QUICK RELEASE (FUEL SYSTEM) CONNECTOR [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)


Specification

Item

Specification
Fuel injector
Type
High resistance
Fuel supply method
Top-feed
Drive types
Electronic
Pressure regulator control pressure
(kPa {kgf/cm2, psi})
Approx. 430 {4.38, 62.4}
Fuel pump type
Electric
Fuel tank capacity
(L {US gal, Imp gal})
62.2 {16.4, 13.7}


Fuel type

Fuel

Research Octane Number

Country
Premium unleaded fuel (Conforming to EN 228 and within E10)
95 or above
New Caledonia, Turkey, Azerbaijan, Armenia, Georgia, Kazakhstan, Canary Islands, Reunion, Morocco, Austria, Greece, Italy, Switzerland, Belgium, Denmark, Finland, Norway, Portugal, Spain, Sweden, Hungary, Germany, Poland, Bulgaria, Croatia, Slovenia, Luxembourg, Slovakia, Latvia, Lithuania, Russia, Belarus, France, Ukraine, Czech, Estonia, Faeroe, Iceland, Romania, The Netherlands, Macedonia, Bosnia and Herzegovina, Serbia, Montenegro, Albania, Moldova, Martinique, F.Guiana, Guadeloupe, Cyprus, Malta, Ireland, UK, Taiwan, Tahiti, Vanuatu, Iran, UAE, Lebanon, Israel, Algeria, Libya, Tunisia, Madagascar, Guatemala, Bolivia, Uruguay, Honduras, Nicaragua, Aruba, St. Martin, Singapore, Hong Kong, Malaysia, Brunei, Macau, Mauritius, South Africa, Jamaica, Barbados, Grenada, ST. Lucia, ST. Vincent, Antigua, Suriname, Mongolia, Seychelles, Namibia, Botswana, Swaziland, Lesoto
