FUEL SYSTEM LOCATION INDEX [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]

id0114q7800100

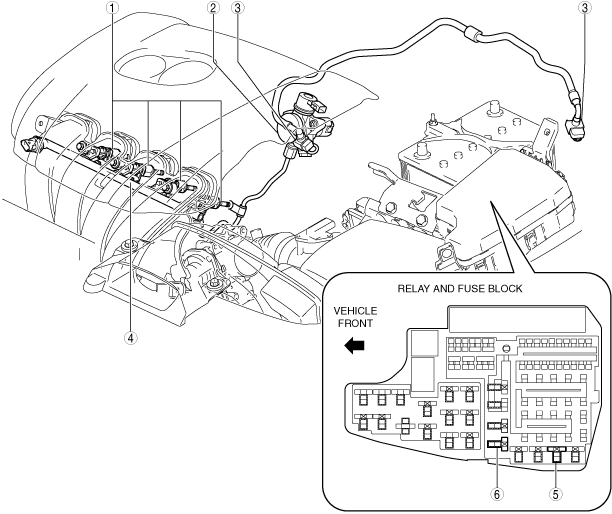

Engine Compartment Side

am6xuw00010963

1	Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See FUEL INJECTOR INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
2	High pressure fuel pump (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See HIGH PRESSURE FUEL PUMP INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
3	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
4	Fuel distributor (See FUEL INJECTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
5	Fuel pump relay (See RELAY INSPECTION.)
6	Sub relay (See RELAY INSPECTION.)

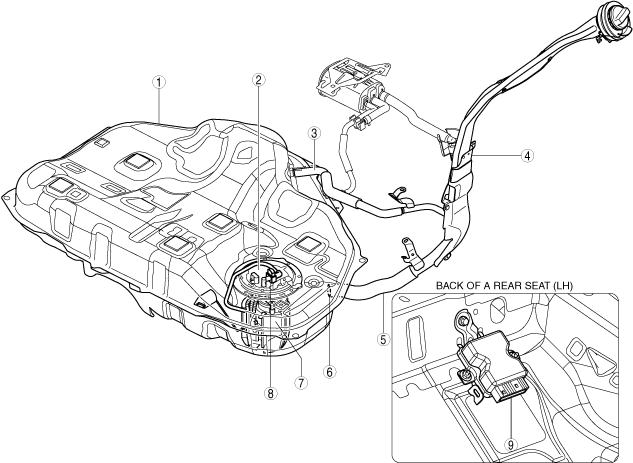

Fuel Tank Side

am6xuw00005246

1	Fuel tank (See FUEL TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See FUEL TANK INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
2	Fuel pump unit (See FUEL PUMP UNIT REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See FUEL PUMP UNIT DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See FUEL PUMP UNIT INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
3	Breather hose (See FUEL TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
4	Fuel-filler pipe (See FUEL-FILLER PIPE REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
5	Joint hose (See FUEL TANK REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
6	Non-return valve (See NON-RETURN VALVE INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
7	Fuel filter (high-pressure) (See FUEL FILTER (HIGH-PRESSURE) REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
8	Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
9	Fuel pump control module (See FUEL PUMP CONTROL MODULE REMOVAL/INSTALLATION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].) (See FUEL PUMP CONTROL MODULE INSPECTION [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)].)
