FUEL DISTRIBUTOR [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT CYLINDER DEACTIVATION)]

id0114q8160000

Purpose, Function

• Distributes fuel pumped from the high pressure fuel pump to each fuel injector.

Construction

• The fuel distributor is installed to the cylinder head.

ac5uun00000057

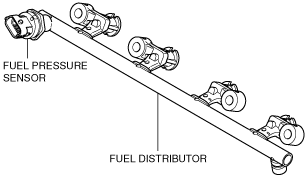

• The fuel distributor is integrated with the fuel pressure sensor.

am3uun00002144
