MAIN SILENCER [SKYACTIV-D 2.2]

id0115z7101000

Purpose, Function

• Reduces the exhaust noise.

Construction

• The main silencer is installed to the vehicle rear, under the trunk compartment.

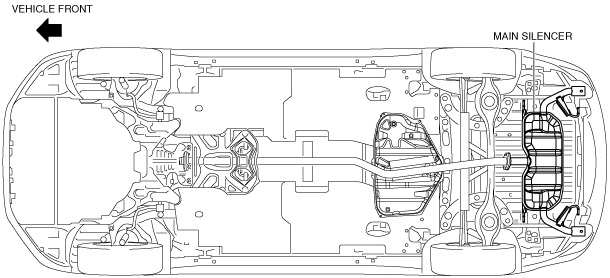

Without SCR system

am6zzn00002746

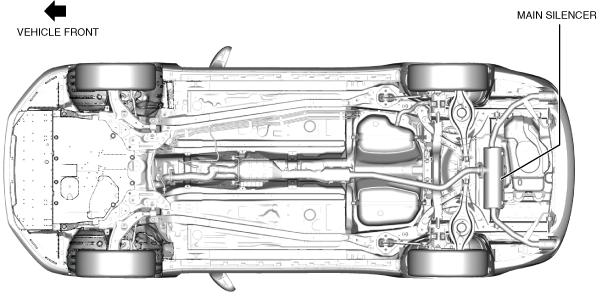

With SCR sysem

am6xun00004498

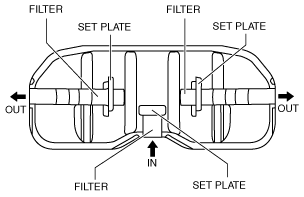

• The main silencer consists of the filters and set plates.

Without SCR system

am6zzn00004119

With SCR system

am6xun00004499
