• Prevents fuel from flowing into the evaporative gas passage during sudden cornering or vehicle rollover.
Construction
• The rollover valve is built into the fuel tank.

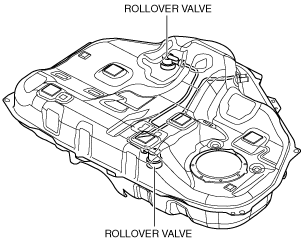

2WD
am6zzn00002518

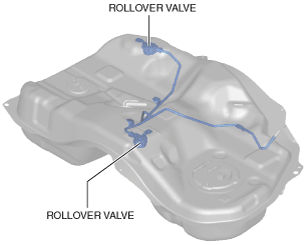

4WD
am6zzn00003234
• The rollover valve consists of a float, O-ring and spring.
am6zzn00002519
Operation
• The rollover valve utilizes a combination of float weight, spring force, and buoyancy. When the float is immersed in the fuel, the float (valve) closes to block the sealing surface of the passage.
