QUICK RELEASE CONNECTOR (EMISSION SYSTEM) [SKYACTIV-D 2.2]

id0116e1153000

Purpose, Function

• Serviceability has been improved by the easy disconnection/connection.

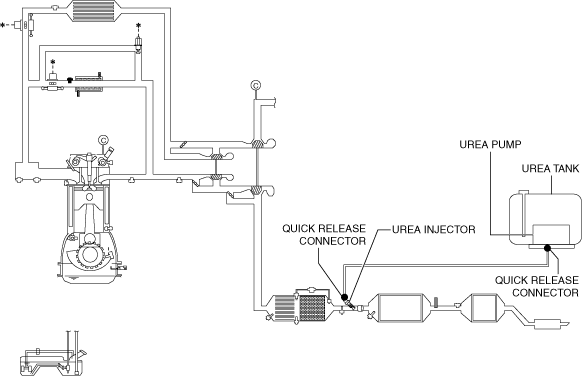

Construction

am6zzn00005736

Removal

1. Push the retainer shown in the figure.

ac5uuw00010300

2. Disconnect the quick release connector.

3. Cover the disconnected quick release connector and pipe with vinyl sheeting or a similar material to prevent it from getting scratched or dirty.

Installation

1. Inspect the hose and pipe sealing surface for damage and deformation.

• If there is any malfunction, replace it with a new one.

2. Install the quick release connector.

ac5uuw00010301

• Insert the pipe straight to the end of the quick release connector.

3. Lightly pull and push the quick release connector a few times by hand, and then verify that it is connected securely.
