CHECK VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2]
id0116e1189700
1. Remove in the order shown in the figure.
2. Install in the reverse order of removal.

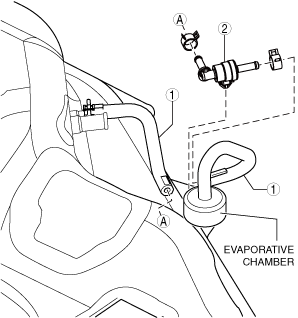

2WD
am6zzw00018144
|
|
1
|
Evaporative hose
|
|
2
|
Check valve
|

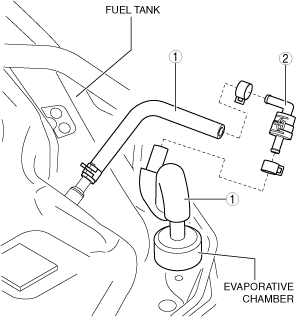

4WD
am6zzw00013121
|
|
1
|
Evaporative hose
|
|
2
|
Check valve
|
Check valve installation note
1. Install the check valve as shown in the figure.

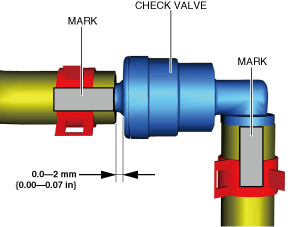

2WD
am6zzw00018119
|

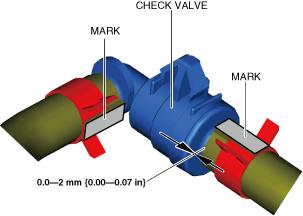

4WD
am6zzw00018145
|
