UREA INJECTOR [SKYACTIV-D 2.2]

id0116e1285500

With SCR system

Purpose, Function

•  The urea injector injects AdBlue^® according to the control signal from the dosing control unit.

Construction

•  The urea injector is installed near the SCR converter.

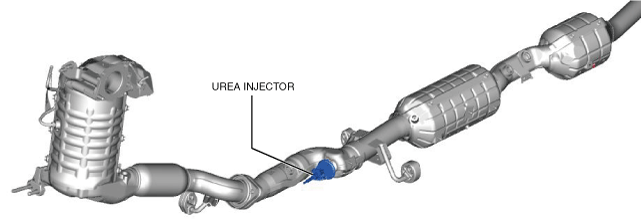

2WD

am6zzn00005671

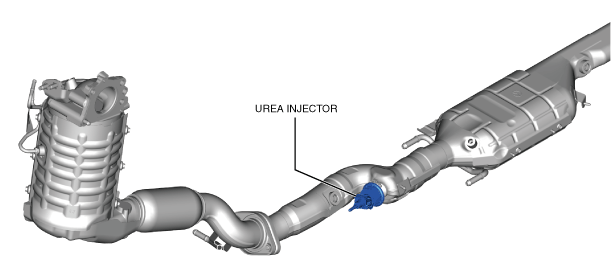

4WD

am6xun00004513

Operation

•  The solenoid valve of the urea injector is opened according to the signal from the dosing control unit, and injects AdBlue^®.

ac5uun00003535
