QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0116e1805500

Caution

•  Foreign material on the connecting area of the quick release connector might cause damage to the connector or evaporative hose. To prevent this, clean the connecting area before reconnecting a disconnected connector.

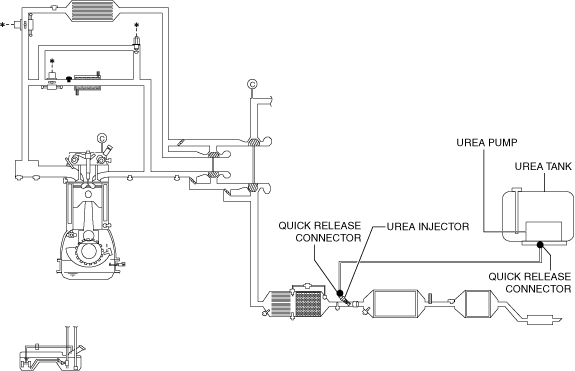

Quick release connector position

am6zzw00017542

Removal

1.  Push the retainer shown in the figure.

ac5uuw00010300

2.  Disconnect the quick release connector.

3.  Cover the disconnected quick release connector and pipe with vinyl sheeting or a similar material to prevent it from getting scratched or dirty.

Installation

1.  Inspect the hose and pipe sealing surface for damage and deformation.

•  If there is any malfunction, replace it with a new one.

2.  Install the quick release connector.

ac5uuw00010301

•  Insert the pipe straight to the end of the quick release connector.

3.  Lightly pull and push the quick release connector a few times by hand, and then verify that it is connected securely.
