EVAPORATIVE CHAMBER REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0116e1809800

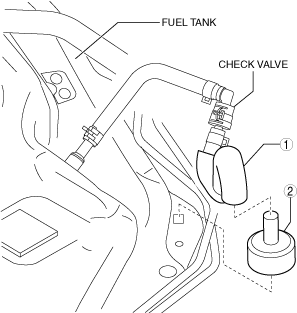

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

am6zzw00013125

1	Evaporative hose
2	Evaporative chamber (See Evaporative chamber Installation Note.)

Evaporative chamber Installation Note

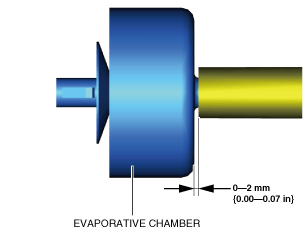

1.  Install the evaporative chamber as shown in the figure.

am6zzw00018121
