•  Serviceability has been improved by easy disconnection/connection of the quick release connector.

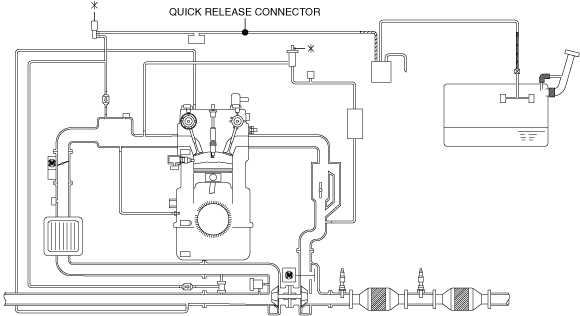

•  Quick release connectors are located on the following:

am6zzn00005297

•  An SST is not used with this type of quick release connector.

•  Consists of a retainer and O-ring.

•  The quick release connector is integrated with the evaporative hose and therefore cannot be disassembled.

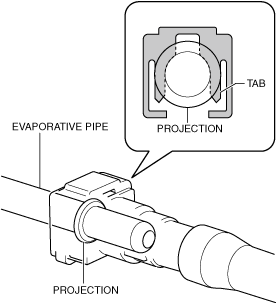

•  The hose does not pull out because the retainer tabs become caught against the ring projection of the evaporative pipe.

ac9uun00002853

•  When removing the evaporative hose, remove the retainer using a flathead screwdriver as shown in the figure.
