CHECK VALVE (EMISSION SYSTEM) REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]
id0116q4192400

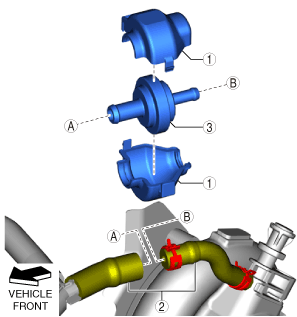

Ejector Side
1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
ac9uuw00009467
|
|
1
|
Cover
|
|
2
|
Evaporative hose
|
|
3
|
Check valve (ejector side)
|
Check valve (ejector side) installation note
1. Install the check valve (ejector side) as shown in the figure.
ac9uuw00009478
|
Intake Manifold Side
1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T].)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
ac9uuw00009468
|
|
1
|
Vacuum hose
|
|
2
|
Check valve (intake manifold side)
|
Check valve (intake manifold side) installation note
1. Install the check valve (intake manifold side) as shown in the figure.
ac9uuw00009479
|

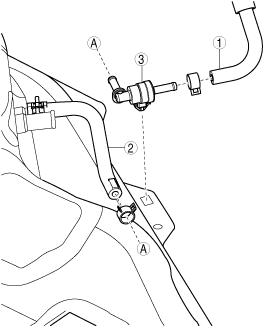

Fuel Tank Side
1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
am6zzw00018125
|
|
1
|
Evaporative hose No.1
|
|
2
|
Evaporative hose No.2
|
|
3
|
Check valve (fuel tank side)
|
Check valve (fuel tank side) installation note
1. Install the check valve as shown in the figure.
Evaporative hose No.1 side
am6zzw00018153
|

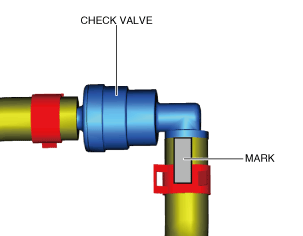

Evaporative hose No.2 side
am6zzw00018127
|
