EVAPORATIVE CHAMBER REMOVAL/INSTALLATION [SKYACTIV-G 2.5T]

id0116q4809800

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

am6xuw00005669

1	Evaporative hose
2	Evaporative chamber (See Evaporative chamber Installation Note.)

Evaporative chamber Installation Note

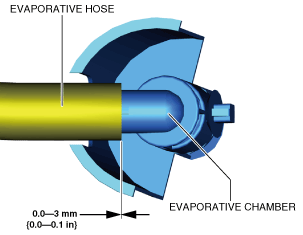

1.  Install the evaporative chamber as shown in the figure.

am6zzw00018128
