ROLLOVER VALVE [SKYACTIV-G 2.5 (WITH CYLINDER DEACTIVATION)]
id0116q5122900
Purpose, Function
• Prevents fuel from flowing into the evaporative gas passage during sudden cornering or vehicle rollover.
Construction

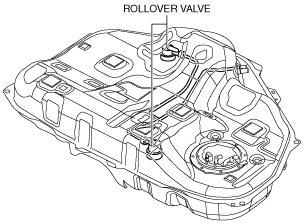

• The rollover valve is built into the fuel tank.
• The rollover valve consists of a float, O-ring and spring.
Operation
• The rollover valve utilizes a combination of float weight, spring force, and buoyancy. When the float is immersed in the fuel, the float (valve) closes to block the sealing surface of the passage.
